UL444 Certified CAT6 UTP Ethernet LAN Cable for High-Speed Transmission in Network Applications

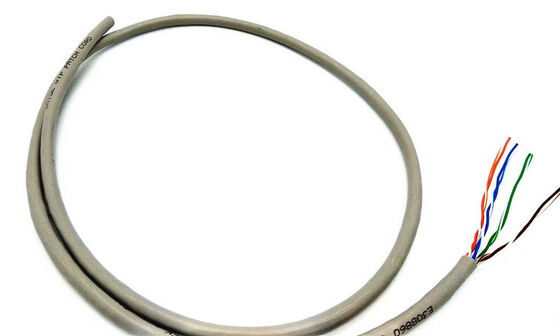

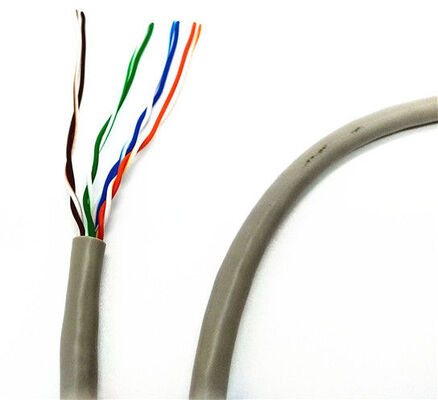

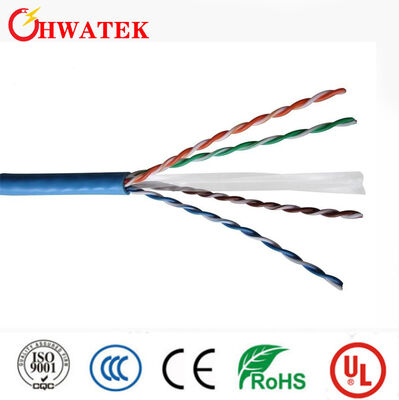

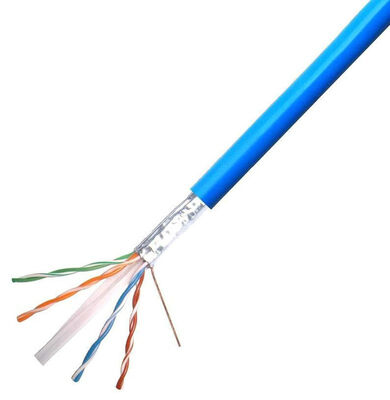

Large Image : UL444 Certified CAT6 UTP Ethernet LAN Cable for High-Speed Transmission in Network Applications

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	10,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PE	Material Shape:	Round Wire
Conductor Diameter:	1/0.57 Mm	Insulation Thickness:	1.02 Mm
No. Of Pairs:	4	Shield Type:	UTP, FTP, S-UTP, S-FTP
Shield Material:	AL-Mylar	Braid Shield:	16/6/0.10 Mm
Nominal Diameter:	6.00-6.70 Mm	Flame Rate:	CMX, CM, CMG, CMR
Transmission Speed:	1000Base-T (Gigabit Ethernet)	Cable Type:	CAT6
Roll Length:	305m, 610m
Highlight:	UL444 Certified Ethernet Cable , CAT6 UTP LAN Cable , High-Speed Transmission Network Cable

UL444 CAT6 UTP Ethernet Network LAN Computer Insulated Cable

Products are used in 100Base-T4, 100VG-AnyLAN, 1000Base-T (Gigabit Ethernet), 155Mbps ATM, 622Mbps ATM

Application

Communication and signal control systems

Application Standard

UL444

Product Characteristics

High-speed transmission, strong shielding property
Flame rate: CMX, CM, CMG, CMR
Standard thickness, easily strip and cut

Construction

Stranded or Solid copper, tinned or bare conductor, copper jacket steel conductor
PE insulation
PVC jacket

Product Specifications

Product number	Conductor	Insulation	Construction No.of Pairs	Shield	Braid Shield	Jacket
HT-CAT6-UTP001	1/0.57	1.02	UTP 4	-	-	6.00
HT-CAT6-FTP001	1/0.57	1.00	FTP 4	AL-Mylar	-	6.30
HT-CAT6-SUTP001	1/0.57	1.00	S-UTP 4	AL-Mylar	16/6/0.10	6.50
HT-CAT6-SFTP001	1/0.57	1.05	S-FTP 4	AL-Mylar	16/6/0.10	6.70
