Shielded Outdoor Cat5e Network Cable with High-speed Transmission for Ethernet Applications

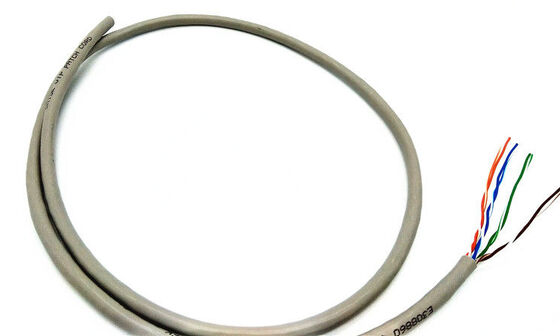

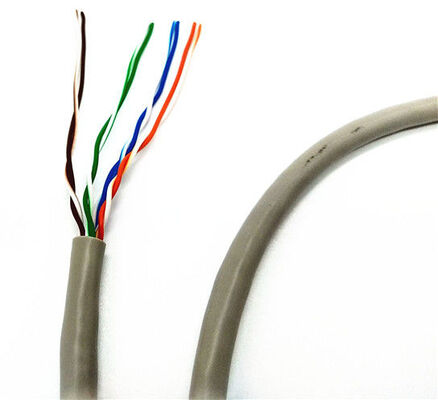

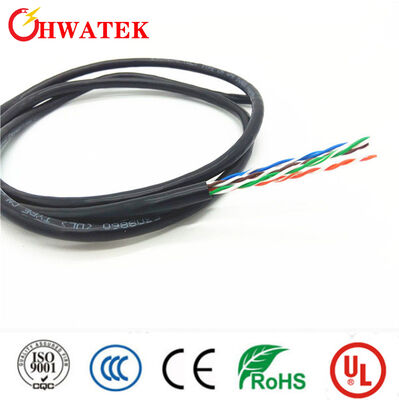

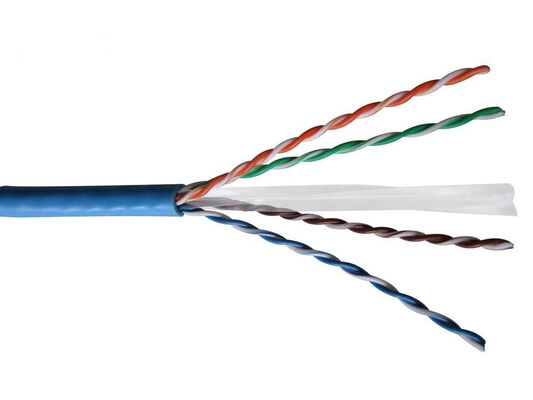

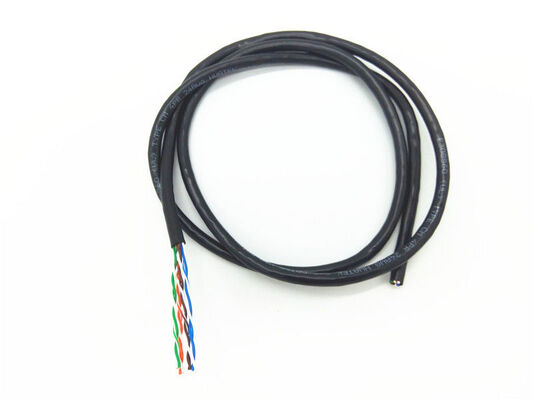

Large Image : Shielded Outdoor Cat5e Network Cable with High-speed Transmission for Ethernet Applications

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	10,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PE	Material Shape:	Round Wire
Qty/Roll:	305m, 610m Or As Request	Conductor Diameter:	1/0.51mm, 1/0.53mm
Insulation Thickness:	0.95mm, 1.00mm	No. Of Pairs:	4
Shield Type:	AL-Mylar	Braid Shield:	16/6/0.10mm
Nominal Diameter:	5.10mm, 5.60mm, 6.00mm	Flame Rate:	CMX, CM, CMG, CMR
Transmission Speed:	100Base-T4, 100Base-TX, 1000Base-T, 155Mbps ATM, 622Mbps ATM	Construction Type:	UTP, FTP, S-UTP, S-FTP
Standard Compliance:	UL444
Highlight:	Shielded Cat5e Cable , Outdoor Network Cable , High-speed Transmission Ethernet Cable

4p Cat5e Network SFTP FTP LAN Internet Shielded Outdoor Cable

Applications & Standards

Designed for 100Base-T4, 100Base-TX, 1000Base-T (Gigabit internet), 155Mbps ATM, and 622Mbps ATM applications.

Application: Communication and signal control systems

Application Standard: UL444

Product Characteristics

• High-speed transmission with strong shielding properties

• Flame ratings: CMX, CM, CMG, CMR

• Standard thickness for easy stripping and cutting

Construction Details

• Stranded or solid copper conductors (tinned or bare)

• Copper jacket steel conductor options

• PE insulation

• PVC jacket

Product Specifications

Product Number	Conductor	Insulation	Construction	Shield	Braid Shield	Jacket
HT-CAT5-UTP001	1/0.51	0.95	UTP 4	-	-	5.10
HT-CAT5-FTP001	1/0.53	1.00	FTP 4	AL-Mylar	-	5.60
HT-CAT5-SUTP001	1/0.53	1.00	S-UTP 4	AL-Mylar	16/6/0.10	6.00
HT-CAT5-SFTP001	1/0.53	1.00	S-FTP 4	AL-Mylar	16/6/0.10	6.00
