High-speed Transmission UL444 Certified Cat5 Ethernet Cable with 305m Roll Length for Outdoor Communication

Large Image : High-speed Transmission UL444 Certified Cat5 Ethernet Cable with 305m Roll Length for Outdoor Communication

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	10,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PE	Material Shape:	Round Wire
Application Standard:	UL444	Flame Rate:	CMX, CM, CMG, CMR
Conductor Type:	Stranded Or Solid Copper	Conductor Jacket:	Tinned Or Bare
Shield Type:	AL-Mylar	Braid Shield:	16/6/0.10
Nominal Diameter:	5.10-6.00 Mm	Pairs:	4
Cable Type:	UTP, FTP, S-UTP, S-FTP	Transmission Speed:	100Base-T4, 100Base-TX, 1000Base-T, 155Mbps ATM, 622Mbps ATM
Quantity Per Roll:	305m, 610m
Highlight:	High-speed Transmission Ethernet Cable , UL444 Certified Cat5 Cable , 305m Roll Length Outdoor Communication Cable

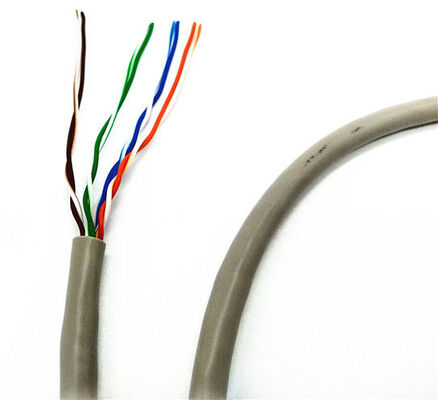

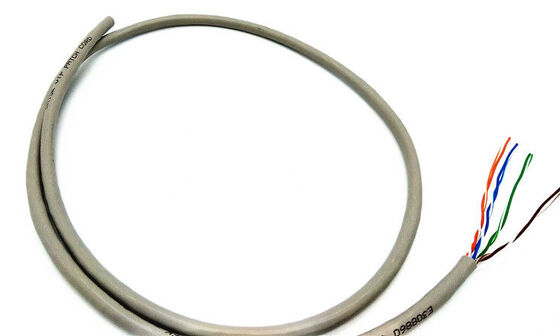

Cat5 4p 8 Core Ethernet Internet Outdoor Communication Cable

Products are used in 100Base-T4, 100Base-TX, 1000Base-T (Gigabit internet), 155Mbps ATM, 622Mbps ATM.

Applications

Communication and signal control systems

Application Standard

UL444

Product Characteristics

High-speed transmission, strong shielding property
Flame rate: CMX, CM, CMG, CMR
Standard thickness, easily strip and cut

Construction

Stranded or Solid copper, tinned or bare conductor, copper jacket steel conductor
PE insulation
PVC jacket

Product Specifications

Product number	Conductor	Insulation	Construction No.of Pairs	Shield	Braid Shield	Jacket
HT-CAT5-UTP001	1/0.51	0.95	UTP 4	-	-	5.10
HT-CAT5-FTP001	1/0.53	1.00	FTP 4	AL-Mylar	-	5.60
HT-CAT5-SUTP001	1/0.53	1.00	S-UTP 4	AL-Mylar	16/6/0.10	6.00
HT-CAT5-SFTP001	1/0.53	1.00	S-FTP 4	AL-Mylar	16/6/0.10	6.00
