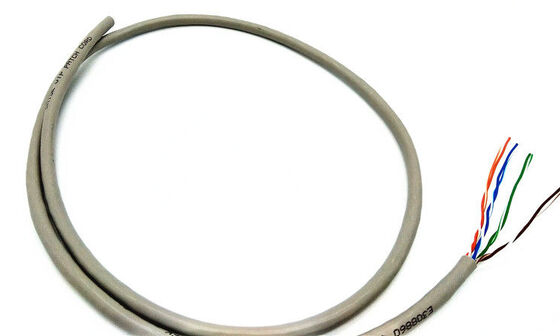

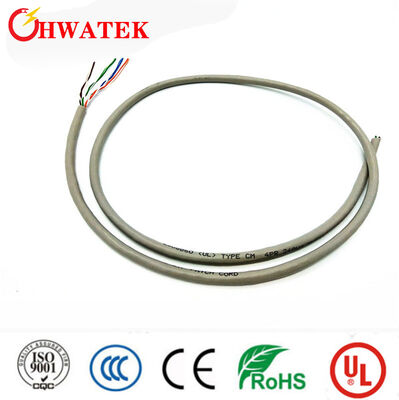

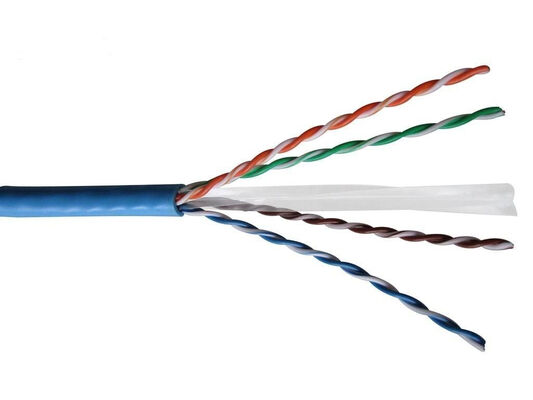

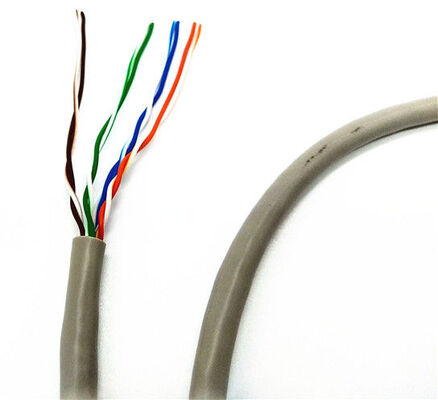

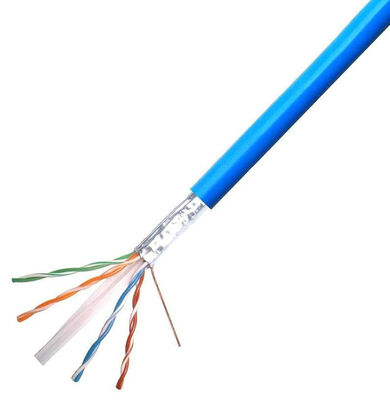

High-speed transmission CAT6A Ethernet Cable with CMX flame rate and 305m roll length for outdoor LAN networks

Large Image : High-speed transmission CAT6A Ethernet Cable with CMX flame rate and 305m roll length for outdoor LAN networks

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	10,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PE	Material Shape:	Round Wire
Flame Rate:	CMX, CM, CMG, CMR	Conductor Type:	Stranded Or Solid
Conductor Finish:	Tinned Or Bare	No. Of Pairs:	4
Shield Type:	UTP, FTP, S-UTP, S-FTP	Braid Shield:	16/6/0.10
Nominal Diameter:	6.00mm, 6.30mm, 6.50mm, 6.70mm	Conductor Size:	1/0.57mm
Insulation Thickness:	1.02mm, 1.00mm, 1.05mm	Shield Material:	AL-Mylar
Cable Length:	305m, 610m
Highlight:	High-speed transmission CAT6A Ethernet Cable , CMX flame rate Outdoor LAN Cable , 305m roll length Network Data Cable

CMX, CM, CMG, CMR CAT6A Outdoor Ethernet Network Data UTP LAN Cable CAT6

Applications & Standards

Compatible with 100Base-T4, 100VG-AnyLAN, 1000Base-T (Gigabit Ethernet), 155Mbps ATM, and 622Mbps ATM systems

Application: Communication and signal control systems

Application Standard: UL444

Product Characteristics

High-speed transmission capability
Strong shielding properties
Flame ratings: CMX, CM, CMG, CMR
Standard thickness for easy stripping and cutting

Cable Construction

Stranded or solid copper conductors, tinned or bare

PE insulation with PVC jacket

Product Number	Conductor	Insulation	Construction	Shield	Braid Shield	Jacket Nom. Dia. mm
HT-CAT6-UTP001	1/0.57	1.02	UTP 4	-	-	6.00
HT-CAT6-FTP001	1/0.57	1.00	FTP 4	AL-Mylar	-	6.30
HT-CAT6-SUTP001	1/0.57	1.00	S-UTP 4	AL-Mylar	16/6/0.10	6.50
HT-CAT6-SFTP001	1/0.57	1.05	S-FTP 4	AL-Mylar	16/6/0.10	6.70

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters.

In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

We hold ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, and all products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications.

Operating under the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION, we serve global customers across various industries.
