Flame Retardant Cat5e UTP SFTP Network Cable with High-Speed Transmission and Strong Shielding

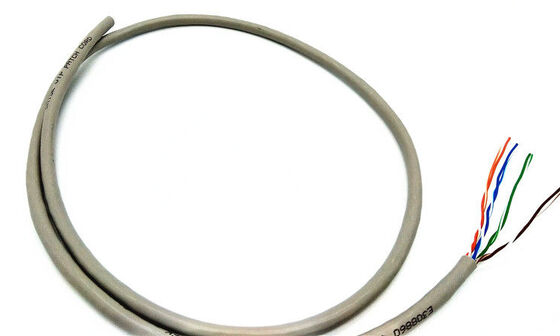

Large Image : Flame Retardant Cat5e UTP SFTP Network Cable with High-Speed Transmission and Strong Shielding

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	10,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PE	Material Shape:	Round Wire
Flame Rate:	CMX, CM, CMG, CMR	Conductor Diameter:	1/0.51mm, 1/0.53mm
Insulation Thickness:	0.95mm, 1.00mm	Construction Pairs:	4
Shield Material:	AL-Mylar	Braid Shield:	16/6/0.10mm
Nominal Diameter:	5.10mm, 5.60mm, 6.00mm	Cable Type:	UTP, FTP, S-UTP, S-FTP
Application Standard:	UL444	Transmission Speed:	100Base-T4, 100Base-TX, 1000Base-T, 155Mbps ATM, 622Mbps ATM
Quantity Per Roll:	305m, 610m
Highlight:	Flame Retardant Cat5e Network Cable , High-Speed Transmission UTP Communication Cable , Strong Shielding Property SFTP Ethernet Cable

Flame Retardant Cat5e Camera UTP SFTP Network Communication Cable

Products are used in 100Base-T4, 100Base-TX, 1000Base-T (Gigabit internet), 155Mbps ATM, 622Mbps ATM.

Applications

Communication and signal control systems

Application Standard

UL444

Product Characteristics

High-speed transmission, strong shielding property
Flame rate: CMX, CM, CMG, CMR
Standard thickness, easily strip and cut

Construction

Stranded or Solid copper, tinned or bare conductor, copper jacket steel conductor
PE insulation
PVC jacket

Product Specifications

Product number	Conductor	Insulation	Construction No.of Pairs	Shield	Braid Shield	Jacket
HT-CAT5-UTP001	1/0.51	0.95	UTP 4	-	-	5.10
HT-CAT5-FTP001	1/0.53	1.00	FTP 4	AL-Mylar	-	5.60
HT-CAT5-SUTP001	1/0.53	1.00	S-UTP 4	AL-Mylar	16/6/0.10	6.00
HT-CAT5-SFTP001	1/0.53	1.00	S-FTP 4	AL-Mylar	16/6/0.10	6.00
