Custom High-speed Transmission UL444 Certified Cat5e Network Cable with 305m Roll Length

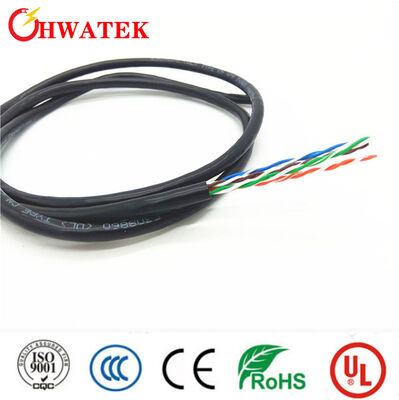

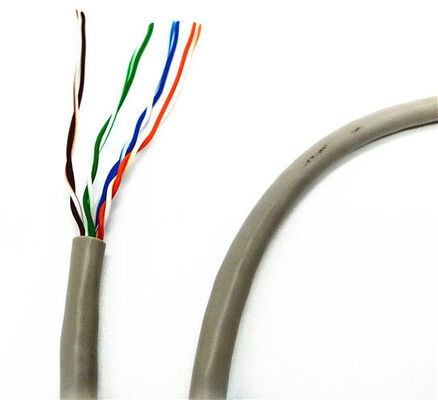

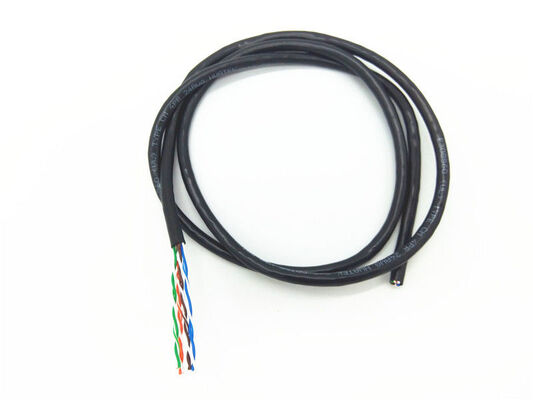

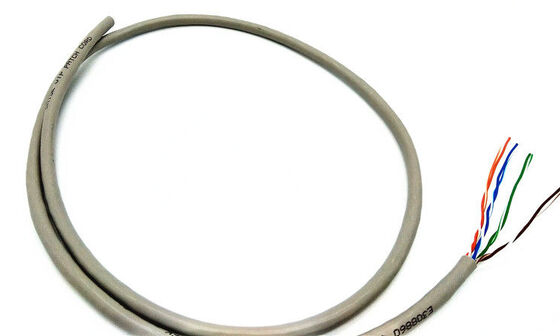

Large Image : Custom High-speed Transmission UL444 Certified Cat5e Network Cable with 305m Roll Length

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	10,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PE	Material Shape:	Round Wire
Application Range:	Cat5e Cable	Conductor Diameter:	0.51mm, 0.53mm
Insulation Thickness:	0.95mm, 1.00mm	No. Of Pairs:	4
Shield Type:	UTP, FTP, S-UTP, S-FTP	Shield Material:	AL-Mylar
Braid Shield:	16/6/0.10mm	Nominal Diameter:	5.10mm, 5.60mm, 6.00mm
Flame Rate:	CMX, CM, CMG, CMR	Transmission Speed:	100Base-T4, 100Base-TX, 1000Base-T, 155Mbps ATM, 622Mbps ATM
Qty Per Roll:	305m, 610m
Highlight:	High-speed Transmission Network Cable , UL444 Certified Cat5e Cable , 305m Roll Length Ethernet Cable

Custom 4 Pairs Camera UTP FTP Cat5e Network Wire Cable

Applications & Standards

Products are used in 100Base-T4, 100Base-TX, 1000Base-T (Gigabit internet), 155Mbps ATM, 622Mbps ATM.

Application: Communication and signal control systems

Application Standard: UL444

Product Characteristics

High-speed transmission with strong shielding properties
Flame rate: CMX, CM, CMG, CMR
Standard thickness for easy stripping and cutting

Construction Details

Stranded or solid copper conductors, tinned or bare
Copper jacket steel conductor
PE insulation
PVC jacket

Product Specifications

Product Number	Conductor	Insulation	Construction	Shield	Braid Shield	Jacket
HT-CAT5-UTP001	1/0.51	0.95	UTP 4	-	-	5.10
HT-CAT5-FTP001	1/0.53	1.00	FTP 4	AL-Mylar	-	5.60
HT-CAT5-SUTP001	1/0.53	1.00	S-UTP 4	AL-Mylar	16/6/0.10	6.00
HT-CAT5-SFTP001	1/0.53	1.00	S-FTP 4	AL-Mylar	16/6/0.10	6.00
