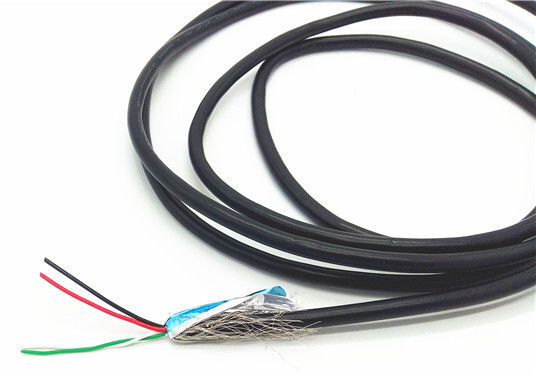

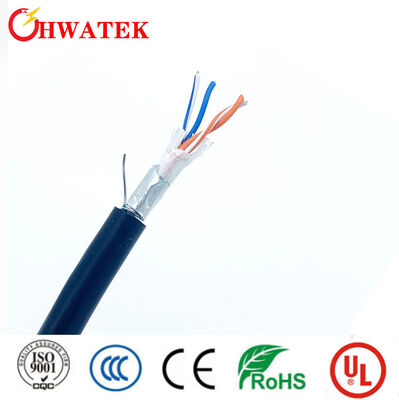

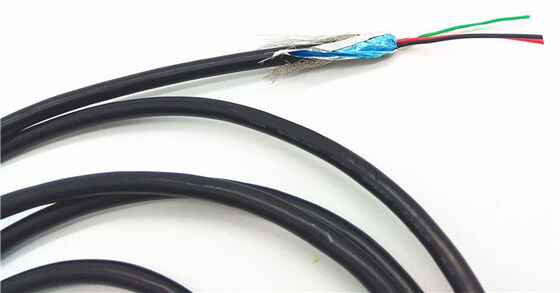

Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication

Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication
Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication

Large Image :  Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication

Product Details:
Certification: ISO9001, CE, CCC, RoHS
Payment & Shipping Terms:
Minimum Order Quantity: 3,000
Price: 0.5
Contact Now
Detailed Product Description
Sheath Material: PVC Insulation Material: HDPE
Conductor Material: Bare Copper Solid Conductor Size: 1/0.511±0.008mm
Conductor O.D.: 0.511mm Insulation Thickness: 0.23mm (avg), 0.18mm (min)
Insulation O.D.: 0.98±0.08mm Twisted Pair O.D.: 1.96mm
Jacket Material: PVC (720h UV & Oil Resistant) Jacket Thickness: 0.70mm (avg), 0.56mm (min)
Jacket O.D.: 6.20±0.20mm Rated Voltage: 30V
Rated Temperature: -20~80ºC Max DC Resistance: 28.6Ω/1000ft (20ºC)
Impedance: 100±15Ω
Highlight:

UV Resistant PVC Jacket Cat5e Ethernet Cable

,

Bare Copper Conductor SFTP/FTP LAN Cable

,

305m Roll Length Network Communication Cable

Cat5e SFTP/FTP Ethernet Network Internet LAN Communication Cable
Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication 0
Cable Specifications
SpecificationDetails
Cable NameCAT5e CABLE
Cable Spec2P×24AWG(1/0.511B)
RoHS CompliantYes
Conductor MaterialBare copper solid
Conductor Size1/0.511±0.008mm
Conductor O.D.0.511mm
Insulation MaterialHDPE
Insulation ThicknessMin. average 0.23mm, Min. point 0.18mm
Insulation O.D.0.98±0.08mm
Twisted O.D.1.96mm
Cabling MaterialFoam PP tape + Al-mylar (25% min overlap)
Drain MaterialTinned copper solid
Drain Size1/0.511±0.008mm
Jacket MaterialPVC (720h UV resistance & Oil resistance)
Jacket ThicknessMin. average 0.70mm, Min. point 0.56mm
Jacket O.D.6.20±0.20mm
Electrical Characteristics
Rated Voltage30V
Rated Temperature-20°C to 80°C
Max. DC Conductor Resistance (20°C)28.6Ω/1000ft
Max. DC Conductor Resistance Unbalance5%
Time Delay1.74ns/ft max @10MHz
Pair-to-ground Capacitance Unbalance1000pF/1000ft
Impedance100±15Ω
PerformanceMeets Cat5e specifications
Physical Properties
Tensile Strength≥10.3MPa
Elongation≥100%
Aged Condition113±1°C × 168h
Percent of Original Tensile Strength≥70%
Percent of Original Elongation≥65%
Heat Shock TestNo cracking
Cold Bend TestNo cracking
Deformation TestMax. 50%
Minimum Bending Radius8 × O.D.
Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication 1 Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication 2
Company Profile
Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication 3
Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.
We are dedicating to R&D and produce various wires and cables like industrial control, communication instruments, medical control, green energy EV and special wires and cables etc. OEM & ODM is also available.
Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All the ranges of our wires and cables are CCC, UL, CUL, CE, CSA or ETL qualified. With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we are equipped with a comprehensive sales network to serve customers in various fields around the world.
Our Competence
  • Produce cables with insulation & jacket materials: PVC, SR-PVC, XL-PVC(CL PVC), XLPE, FRPE, TPE, FEP etc.
  • Produce cables with temperature range from -40°C to 200°C
  • Produce cables with voltage range from 30V to 1200V DC
  • Flammability rating: VW-1, FT1, FT2
  • 300+ different UL Style approvals from UL Authority
  • QMS Certification: ISO9001-2015, IATF16949-2016, ISO13485-2016
  • Product Certification: CCC, UL, CSA, ETL, CE
  • Support drop-in equivalent to any brand of cables and custom made cables
Certificates
Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication 4
Production Progress
Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication 5
Shipping
Cat5e Ethernet Cable with UV Resistant PVC Jacket Bare Copper Conductor and 305m Roll Length for High-Speed Network Communication 6
Frequently Asked Questions
What can you supply?
We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
What certificates do you have?
We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Can we get samples before ordering?
Yes, we are willing to arrange samples for you.
What's your lead time?
Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
How can you guarantee the product quality?
Always a pre-production sample before mass production and final inspection before shipment.
