UL1115 Insulated PVC Single Core Flexible Wire and Cable

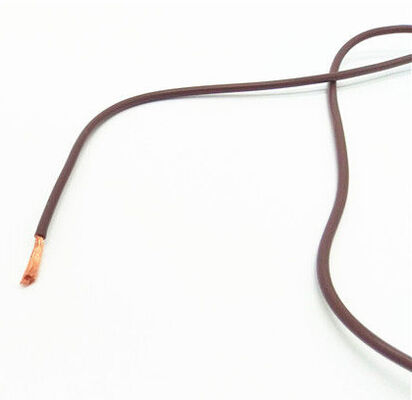

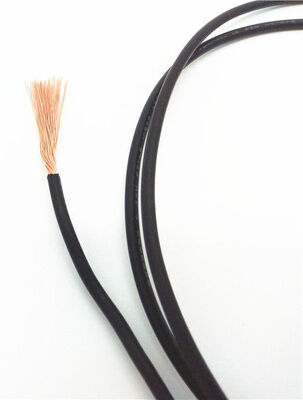

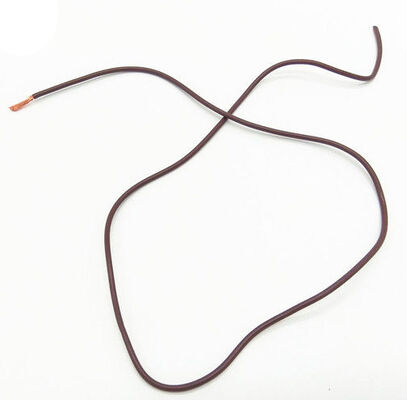

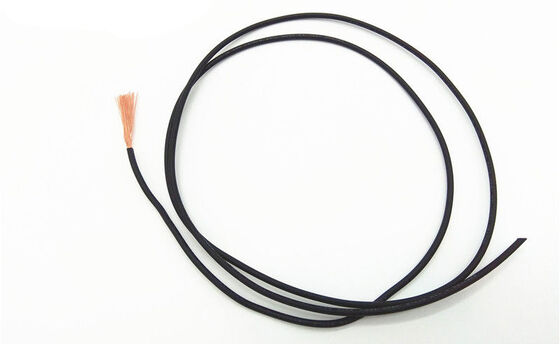

Large Image : UL1115 Insulated PVC Single Core Flexible Wire and Cable

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Model NO.:	UL1115	Insulation Material:	PVC
Material Shape:	Round Wire	Conductor Type:	Solid Or Stranded
Rated Voltage:	300V (insulation), 600V (sheath)	Rated Temperature:	80ºC
Flame Rating:	VW-1, FT1, FT2	Oil Resistance:	60ºC Or 80ºC Oil
Voltage Test:	AC 2.0kV/1min	Printing Details:	E258652 AWM STYLE 1115 AWGXX 80ºC 300V VW-1 ---c AWM I A/B 80ºC 300V FT1 -LF-HWATEK
Standards Compliance:	UL758, UL1581, UL2556, RoHS, REACH	Quantity Per Roll:	305m, 610m Or As Request
Transport Package:	Rolled In Reels, Packed In Pallets	Color Options:	Optional
HS Code:	8544492100
Highlight:	UL1115 insulated PVC wire , flexible single core cable , PVC insulated single conductor cable

UL1115 Insulated PVC Single Core Flexible Wire and Cable

Construction

Conductor: Solid or Stranded
Insulation: PVC

Standards Compliance

International Standards: UL758, UL1581, UL2556
RoHS and REACH Compliant

Technical Specifications

Rated Voltage	300V (insulation), 600V (sheath)
Rated Temperature	80ºC
Flame Rating	VW-1, FT1, FT2
Oil Resistance	60ºC or 80ºC Oil
Voltage Withstand Test	AC 2.0kV/1min
Printing	E258652 AWM STYLE 1115 AWGXX 80ºC 300V VW-1 ---c AWM I A/B 80ºC 300V FT1 -LF-HWATEK Note: "XX" represents AWG Number
