UL1115 30AWG - 16AWG 1 Conductor PVC Single Core Flexible Wire

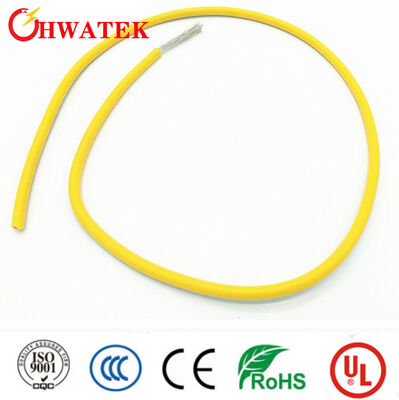

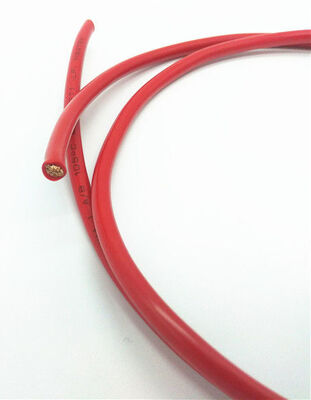

Large Image : UL1115 30AWG - 16AWG 1 Conductor PVC Single Core Flexible Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Type:	Solid Or Stranded	Insulation Material:	PVC
Wire Shape:	Round	AWG Range:	30AWG - 16AWG
Rated Voltage:	300V (insulation), 600V (sheath)	Rated Temperature:	80ºC
Flame Rating:	VW-1, FT1, FT2	Oil Resistance:	60ºC Or 80ºC Oil
Voltage Test:	AC 2.0kV/1min	Printing Details:	E258652 AWM STYLE 1115 AWGXX 80ºC 300V VW-1 ---c AWM I A/B 80ºC 300V FT1 -LF-HWATEK
Conductor Count:	1	Standards Compliance:	UL758, UL1581, UL2556, RoHS, REACH
Quantity Per Roll:	305m, 610m Or As Request	Material Shape:	Round Wire
Color Options:	Optional
Highlight:	UL1115 PVC single core wire , 16AWG flexible conductor cable , 30AWG single conductor PVC wire

UL1115 30AWG - 16AWG 1 Conductor PVC Single Core Flexible Wire

Construction Specifications

Conductor: Solid or Stranded
Insulation: PVC

Compliance Standards

International: UL758, UL1581, UL2556
RoHS Compliant
REACH Compliant

Technical Data

Rated Voltage	300V (insulation), 600V (sheath)
Rated Temperature	80ºC
Flame Rating	VW-1, FT1, FT2
Oil Resistance	60ºC or 80ºC Oil
Voltage Withstand Test	AC 2.0kV/1min
Printing	E258652 AWM STYLE 1115 AWGXX 80ºC 300V VW-1 ---c AWM I A/B 80ºC 300V FT1 -LF-HWATEK Note: "XX" represents AWG Number

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
