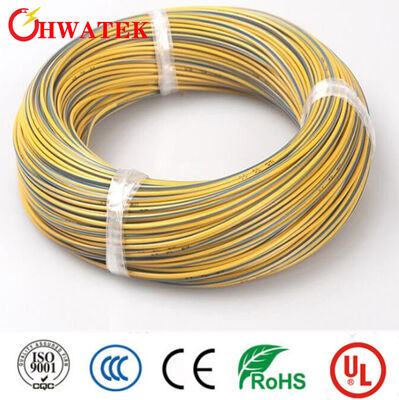

Txl XLPE Insulation Primary Automotive Cable Wire Multi Colored 8-24 AWG

Large Image : Txl XLPE Insulation Primary Automotive Cable Wire Multi Colored 8-24 AWG

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Stranded, Tinned Or Bare Copper	Insulation Material:	XLPE
Rated Voltage:	50V	Rated Temperature:	125ºC
Voltage Withstand:	AC 1.0kV/1min	Conductor AWG:	8-24
Insulation Thickness:	0.41-0.55 Mm	Nominal Diameter:	1.43-4.90 Mm
Max Conductor Resistance:	2.23-88.36 Ω/km	Material Shape:	Round Wire
Color Options:	Optional	Quantity Per Roll:	305m, 610m Or As Request
Oil Resistance:	Yes	High Temperature Resistance:	Yes
Flexibility:	High
Highlight:	XLPE insulation automotive cable , multi-colored primary wire 8-24 AWG , automotive cable wire with XLPE insulation

TXL XLPE Insulation Primary Automotive Cable Wire

Multi-colored automotive cable available in 8-24 AWG sizes with XLPE insulation for superior performance in demanding automotive applications.

Construction Details

Conductor: Stranded, tinned or bare copper
Insulation: XLPE (Cross-linked Polyethylene)

Compliance Standards

International: SAE J1128
RoHS and REACH Compliant

Technical Specifications

Rated Voltage: 50V
Rated Temperature: 125°C

Product Characteristics

Uniform insulation thickness for easy stripping and cutting
Resistant to oil, high temperature, ozone, and abrasion
High flexibility with excellent thermo-mechanical strength
Voltage withstand test: AC 1.0kV/1min

Wire Specifications

Conductor AWG	Stranding (No./mm)	Nom. Insulation Thickness (mm)	Nom. Diameter (mm)	Max. Conductor Resistance (20°C) Ω/km
24	11/0.16	0.41	1.43	88.36
22	17/0.16	0.41	1.58	60.16
20	26/0.16	0.41	1.76	37.56
18	41/0.16	0.41	2.00	24.82
16	26/0.254	0.41	2.30	15.06
14	41/0.254	0.41	2.69	9.65
12	65/0.254	0.46	3.28	6.07
10	65/0.32	0.51	4.00	3.73
8	55/0.45	0.55	4.90	2.23
