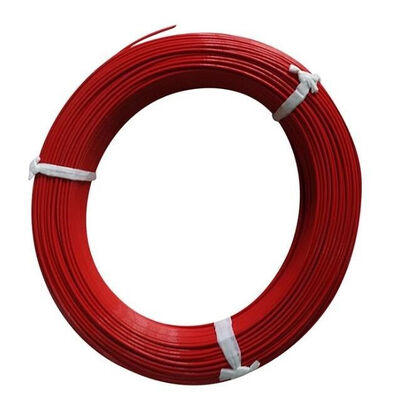

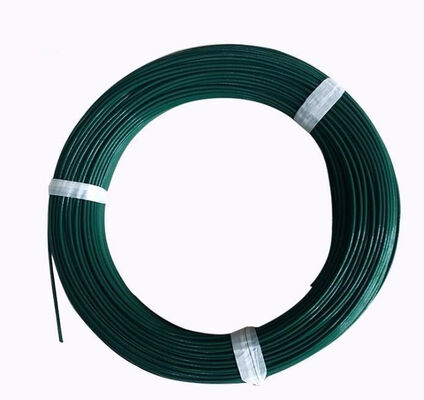

PVC Insulation Automotive Cable Wire High Flexibility Thermo and Mechanical Strength

Large Image : PVC Insulation Automotive Cable Wire High Flexibility Thermo and Mechanical Strength

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Stranded, Tinned Or Bare Copper	Insulation Material:	PVC
Rated Voltage:	50V	Rated Temperature:	105ºC
Voltage Withstand:	AC 1.0kV/1min	Conductor Area:	0.35, 0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0 Mm²
Strand Count:	12/0.21, 16/0.21, 24/0.21, 32/0.21, 30/0.26, 50/0.26, 56/0.31, 84/0.31	Insulation Thickness:	0.20, 0.22, 0.24, 0.24, 0.24, 0.28, 0.32, 0.32 Mm
Nominal Diameter:	1.40, 1.60, 1.90, 2.10, 2.40, 3.00, 3.70, 4.30 Mm	Max Resistance:	54.5, 38.2, 25.4, 19.1, 13.0, 7.8, 4.8, 3.2 Ω/km
Material Shape:	Round Wire	Flexibility:	High
Oil Resistance:	Yes	Temperature Resistance:	High
Abrasion Resistance:	Yes
Highlight:	PVC insulation automotive cable wire , high flexibility automotive cable , thermo mechanical strength wire

PVC Insulation Automotive Cable Wire

High flexibility with excellent thermo and mechanical strength for automotive applications.

Construction

Conductor: Stranded, tinned or bare copper
Insulation: PVC

Standards Compliance

International: DIN 72551-6/1996
RoHS and REACH Compliant

Technical Data

Rated voltage: 50V
Rated Temperature: 105ºC

Product Characteristics

Uniform insulation thickness for easy stripping and cutting
Resistant to oil, high temperature, ozone and abrasion
High flexibility with excellent thermo and mechanical strength
Voltage withstand test: AC 1.0kV/1min

Specifications

Conductor Area (mm²)	No./mm	Nom. Thickness (mm)	Nom. Dia. (mm)	Max. Cond. Resistance (20°C) Ω/km
0.35	12/0.21	0.20	1.40	54.5
0.5	16/0.21	0.22	1.60	38.2
0.75	24/0.21	0.24	1.90	25.4
1.0	32/0.21	0.24	2.10	19.1
1.5	30/0.26	0.24	2.40	13.0
2.5	50/0.26	0.28	3.00	7.8
4.0	56/0.31	0.32	3.70	4.8
6.0	84/0.31	0.32	4.30	3.2
