IATF 16949 50V 8-20 AWG Gxl Flexible Automotive Car Electrical Wire Cable

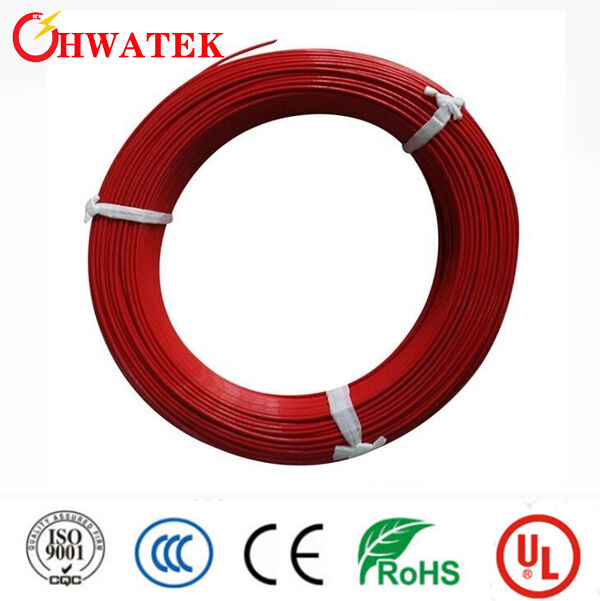

Large Image : IATF 16949 50V 8-20 AWG Gxl Flexible Automotive Car Electrical Wire Cable

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Rated Voltage:	50V	Rated Temperature:	125ºC
Conductor Material:	Stranded, Tinned Or Bare Copper	Insulation Material:	XLPE
Voltage Withstand:	AC 1.0kV/1min	Conductor Resistance:	37.56 Ω/km (20 AWG)
Conductor Resistance:	24.82 Ω/km (18 AWG)	Conductor Resistance:	15.06 Ω/km (16 AWG)
Conductor Resistance:	9.65 Ω/km (14 AWG)	Conductor Resistance:	6.07 Ω/km (12 AWG)
Conductor Resistance:	3.73 Ω/km (10 AWG)	Conductor Resistance:	2.23 Ω/km (8 AWG)
Insulation Thickness:	0.60 Mm (20 AWG)	Insulation Thickness:	0.60 Mm (18 AWG)
Insulation Thickness:	0.60 Mm (16 AWG)
Highlight:	IATF 16949 automotive wire cable , 50V flexible car electrical wire , 8-20 AWG GXL automotive cable

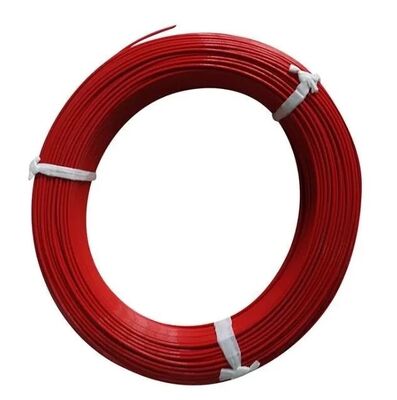

IATF 16949 50V 8-20 AWG Gxl Flexible Automotive Car Electrical Wire Cable

Construction

Conductor: Stranded, tinned or bare copper

Insulation: XLPE

Standards

International: SAE J1128

RoHS, REACH Compliant

Technical Data

Rated voltage: 50V

Rated Temperature: 125ºC

Product Characteristics

Uniform insulation thickness to ensure easy stripping and cutting
Resistant to oil, high temperature, ozone and abrasion
High flexibility thermo and mechanical strength
Voltage withstand test: AC 1.0kV/1min

Specifications

AWG	NO./mm	Nom. Thickness mm	Nom. Dia. mm	Max. Cond. Resistance (200C) Ω/km
20	26/0.16	0.60	2.14	37.56
18	41/0.16	0.60	2.38	24.82
16	26/0.254	0.60	2.69	15.06
14	41/0.254	0.60	3.08	9.65
12	65/0.254	0.66	3.74	6.07
10	65/0.32	0.79	4.57	3.73
8	55/0.45	0.94	5.73	2.23
