SAE J-1128 Gpt 105º C 60V Automotive Internal Connecting Cable Wire

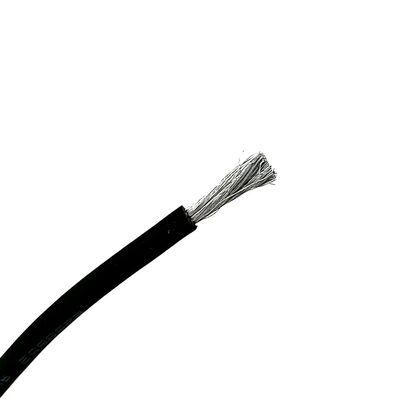

Large Image : SAE J-1128 Gpt 105º C 60V Automotive Internal Connecting Cable Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Tinned Copper Stranded	Cross Section:	2F×10AWG
Strand Diameter:	3.00mm	Insulation Material:	PVC
Insulation Thickness:	0.70mm (Nom.), 0.56mm (Min.)	Insulation O.D.:	(4.52±0.25mm)×(9.04±0.30mm)
Rated Temperature:	105ºC	Voltage Rating:	60V
Max Conductor Resistance:	3.546Ω/km (20ºC)	Dielectric Strength:	2.0kV/1min
Tensile Strength:	≥10.3MPa	Elongation:	≥100%
Aged Condition:	136±1ºC×168h	Tensile Retention:	≥70% (original Strength)
Elongation Retention:	≥65% (original Elongation)
Highlight:	SAE J-1128 automotive cable wire , 105ºC 60V internal connecting cable , automotive wire with high temperature resistance

SAE J-1128 Gpt 105º C 60V Automotive Internal Connecting Cable Wire

Product Specifications

Construction	Mechanical Performance
Conductor Tinned Copper Stranded	Jacket Material PVC
Cross section 2F×10AWG	Tensile strength ≥10.3MPa
Construction 105/0.254mm	Elongation ≥100%
Strand Dia. 3.00mm(Ref.)	Aged condition 136±1ºC×168h
Insulation PVC	Percent of original tensile strength ≥70%
Nom.Thickness 0.70mm	Percent of original elongation ≥65%
Min.Thickness 0.56mm
Insulation O.D.(H×W) (4.52±0.25mm)×(9.04±0.30mm)
Colour Black/Red

Electric Performance
Rated Temperature 105ºC
Voltage rating 60V
Max.conductor DC resistance(20ºC) 3.546Ω/km
Dielectric Strength AC 2.0kV/1min

Product Images

Company Profile

Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.

We are dedicating to R&D and produce various wires and cables like industrial control, communication instruments, medical control, green energy EV and special wires and cables etc. OEM & ODM is also available.

Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All the ranges of our wires and cables are CCC, UL, CUL, CE, CSA or ETL qualified. With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we are equipped with a comprehensive sales network to serve customers in various fields around the world.

Our Core Competencies

Produce Cables with Following Insulation & Jacket PVC, SR-PVC, XL-PVC(CL PVC), XLPE, FRPE, TPE, FEP Etc.
Produce Cables with Temperature Range from -40 to 200 Degree Temperature.
Produce Cables with Volatge Range from 30V to 1200V DC.
Flamability Rating - VW-1, FT1, FT2.
We have 300 Plus different UL Style approval from UL Authority.
QMS Certification- ISO9001-2015, IATF16949-2016, ISO13485-2016.
Product Certification -CCC, UL, CSA, ETL, CE.
We can support drop-in equivalent to any Brand of Cables and Custom made Cables.

Certifications

Production Process

Packaging & Shipping

Frequently Asked Questions

Q: What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.

Major Customers
