Multi Colored Txl XLPE Insulated Primary Automotive Cable Wire

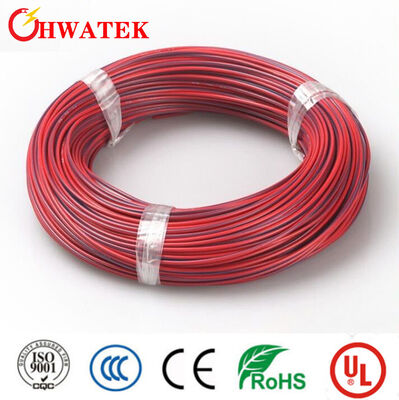

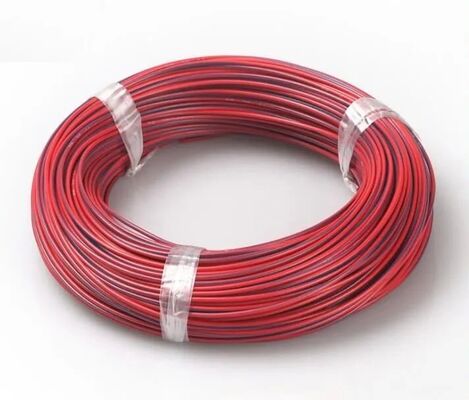

Large Image : Multi Colored Txl XLPE Insulated Primary Automotive Cable Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Stranded, Tinned Or Bare Copper	Insulation Material:	XLPE
Rated Voltage:	50V	Rated Temperature:	125ºC
Voltage Withstand:	AC 1.0kV/1min	Conductor AWG:	24, 22, 20, 18, 16, 14, 12, 10, 8
Conductor Strands:	11/0.16, 17/0.16, 26/0.16, 41/0.16, 26/0.254, 41/0.254, 65/0.254, 65/0.32, 55/0.45	Insulation Thickness:	0.41mm, 0.46mm, 0.51mm, 0.55mm
Nominal Diameter:	1.43mm, 1.58mm, 1.76mm, 2.00mm, 2.30mm, 2.69mm, 3.28mm, 4.00mm, 4.90mm	Max Conductor Resistance:	88.36 Ω/km, 60.16 Ω/km, 37.56 Ω/km, 24.82 Ω/km, 15.06 Ω/km, 9.65 Ω/km, 6.07 Ω/km, 3.73 Ω/km, 2.23 Ω/km
Material Shape:	Round Wire	Quantity Per Roll:	305m, 610m Or As Request
Oil Resistance:	Yes	High Temperature Resistance:	Yes
Ozone Resistance:	Yes
Highlight:	multicolored automotive cable wire , XLPE insulated primary wire , automotive cable wire with warranty

Multi Colored TXL XLPE Insulated Primary Automotive Cable Wire

Construction

Conductor: Stranded, tinned or bare copper
Insulation: XLPE

Standards Compliance

International: SAE J1128
RoHS Compliant
REACH Compliant

Technical Specifications

Rated Voltage: 50V
Rated Temperature: 125ºC

Product Characteristics

Uniform insulation thickness for easy stripping and cutting
Resistant to oil, high temperature, ozone, and abrasion
High flexibility with excellent thermo and mechanical strength
Voltage withstand test: AC 1.0kV/1min

Specifications Table

AWG	NO./mm	Nom. Thickness (mm)	Nom. Dia. (mm)	Max. Cond. Resistance (200C) Ω/km
24	11/0.16	0.41	1.43	88.36
22	17/0.16	0.41	1.58	60.16
20	26/0.16	0.41	1.76	37.56
18	41/0.16	0.41	2.00	24.82
16	26/0.254	0.41	2.30	15.06
14	41/0.254	0.41	2.69	9.65
12	65/0.254	0.46	3.28	6.07
10	65/0.32	0.51	4.00	3.73
8	55/0.45	0.55	4.90	2.23

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. We hold ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, and all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our established sales system, guided by our management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
