Customized UL Certified High-Flexible Oil Resistant EV Charging Cable for Electric Vehicle Charging Stations

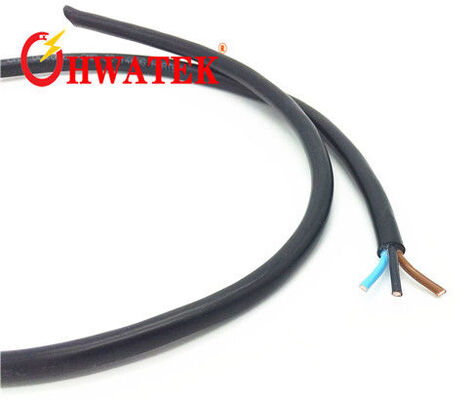

Large Image : Customized UL Certified High-Flexible Oil Resistant EV Charging Cable for Electric Vehicle Charging Stations

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PVC	Material Shape:	Round Wire
Quantity Per Roll:	305m, 610m Or As Request	Rated Voltage:	450/750V AC
Rated Temperature:	-40ºC-90ºC	Flame Standard:	IEC60332-1-3, FT1, FT2
Voltage Withstand Test:	Power Wire: DC 2.5kV/15min, Signal Wire: DC 1.5kV/15min	Conductor Type:	Stranded, Tinned Or Bare Copper
Insulation Type:	Thermoplastic Elastomer	Assembly:	10~70(2~5cores)+0.5~0.75P)(1~10cores)
Sheath Type:	TPE	Oil Resistance:	Yes
UV Resistance:	Yes
Highlight:	UL Certified EV Charging Cable , High-Flexible Electric Vehicle Charging Cable , Oil Resistant EV Power Cable

Customized EVT EV Charging Cable

PVC Insulation Connection Wire UL Certified

Key Advantages

High-flexible design capable of repeated bending
Oil resistant construction
UV resistant properties
High-flame resistance
Moisture-proof protection

Application Range

Connection wire between EV AC charging equipment
EV AC Charging stations and AC Charging piles

Cable Construction

Conductor: Stranded, tinned or bare copper
Insulation: Thermoplastic Elastomer
Assembly: 10~70(2~5 cores) + 0.5~0.75P(1~10 cores)
Non-woven wrap
Sheath: TPE

Application Standards

CQC1103~1105-2015
RoHS, REACH Compliant

Technical Specifications

Rated Voltage	450/750V AC
Rated Temperature	-40ºC to 90ºC
Flame Resistance	IEC60332-1-3, FT1, FT2
Voltage Withstand Test	Power wire: 1.0~70mm² - DC 2.5kV/15min Signal wire: 0.5~0.75mm²P - DC 1.5kV/15min

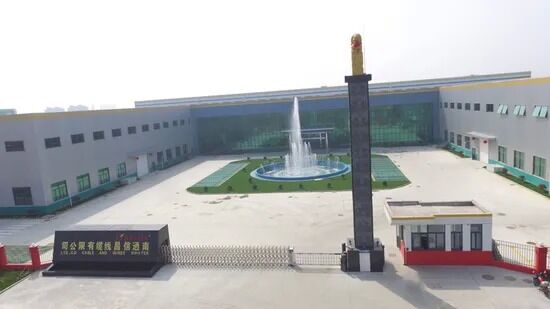

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We work with global customers across various fields through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
