OEM EV-Rss TPE Insulated High-Flexible 450/750V Rated EV Charging Cable for Electric Vehicle AC Charging Station

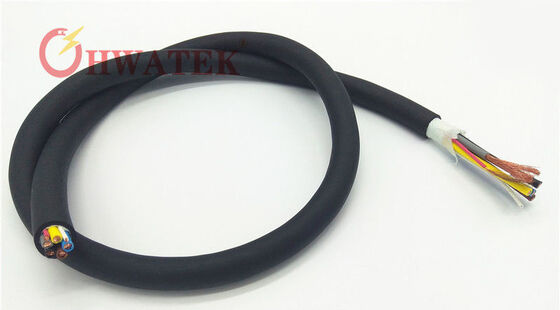

Large Image : OEM EV-Rss TPE Insulated High-Flexible 450/750V Rated EV Charging Cable for Electric Vehicle AC Charging Station

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	TPE
Insulation Material:	TPE	Material Shape:	Round Wire
Rated Voltage:	450/750V AC	Rated Temperature:	-40ºC-90ºC
Flame Resistance:	IEC60332-1-3, FT1, FT2	Voltage Withstand:	Power Wire: DC 2.5kV/15min, Signal Wire: DC 1.5kV/15min
Conductor Type:	Stranded, Tinned Or Bare Copper	Assembly Cores:	10~70(2~5cores)+0.5~0.75P)(1~10cores)
Non-woven Wrap:	Yes	Oil Resistant:	Yes
UV Resistant:	Yes	Moisture-proof:	Yes
High-flexible:	Yes
Highlight:	TPE Insulated EV Charging Cable , High-Flexible Electric Vehicle Charging Cable , 450/750V Rated EV Power Cable

OEM EV-Rss EV Charging Cable for EV AC Charging Station TPE Insulated

Key Advantages

High flexibility with excellent bending capability
Oil resistant construction
UV resistant for outdoor applications
High flame resistance
Moisture-proof design

Application Range

Connection wire between EV AC charging equipment
EV AC Charging stations and AC Charging piles

Cable Construction

Conductor: Stranded, tinned or bare copper

Insulation: Thermoplastic Elastomer

Assembly: 10~70(2~5 cores) + 0.5~0.75P(1~10 cores)

Non-woven wrap

Sheath: TPE (Thermoplastic Elastomer)

Compliance Standards

CQC1103~1105-2015

RoHS and REACH Compliant

Technical Specifications

Parameter	Specification
Rated Voltage	450/750V AC
Temperature Range	-40ºC to 90ºC
Flame Resistance	IEC60332-1-3, FT1, FT2
Voltage Withstand Test (Power Wire)	1.0~70mm²: DC 2.5kV/15min
Voltage Withstand Test (Signal Wire)	0.5~0.75mm²P: DC 1.5kV/15min

Company Profile

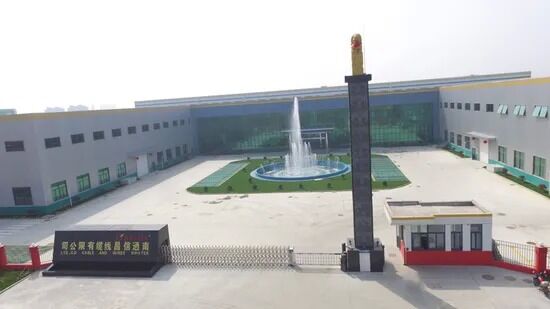

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various fields through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
