High-Flexible TPE Insulation EV Charging Cable Dekra CQC Certified for Electric Vehicle Charging

Large Image : High-Flexible TPE Insulation EV Charging Cable Dekra CQC Certified for Electric Vehicle Charging

Product Details:

Certification:	ISO9001, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Copper	Sheath Material:	TPE
Insulation Material:	TPE	Material Shape:	Round Wire
Rated Voltage:	450/750V AC	Rated Temperature:	-40ºC-90ºC
Flame Resistance:	IEC60332-1-3, FT1, FT2	Voltage Withstand:	Power Wire: DC 2.5kV/15min, Signal Wire: DC 1.5kV/15min
Conductor Type:	Stranded, Tinned Or Bare Copper	Assembly:	10~70(2~5cores)+0.5~0.75P)(1~10cores)
Oil Resistance:	Yes	UV Resistance:	Yes
Moisture Proof:	Yes	High Flexibility:	Yes
Quantity Per Roll:	305m, 610m Or As Request
Highlight:	TPE Insulation EV Charging Cable , Dekra CQC Certified Electric Vehicle Charging Cable , High-Flexible EV Power Cable

EV Charging Cable with TPE Insulation

Key Advantages

High flexibility with excellent bending capability
Oil resistant construction
UV resistant for outdoor applications
High flame resistance
Moisture-proof design

Application Range

Connection wire for EV AC charging equipment
EV AC charging stations and charging piles

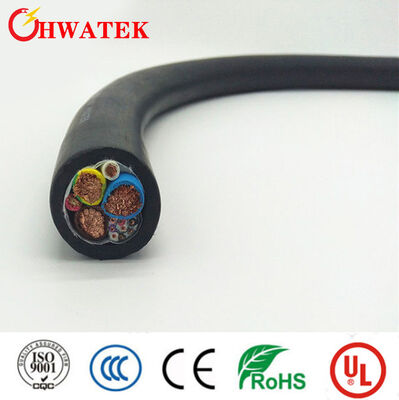

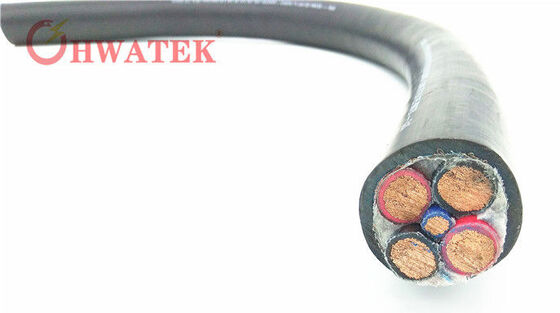

Cable Construction

Conductor: Stranded, tinned or bare copper

Insulation: Thermoplastic Elastomer (TPE)

Assembly: 10-70 (2-5 cores) + 0.5-0.75P (1-10 cores)

Non-woven wrap

Sheath: TPE

Compliance Standards

CQC1103-1105-2015

RoHS and REACH Compliant

Technical Specifications

Parameter	Specification
Rated Voltage	450/750V AC
Temperature Range	-40°C to +90°C
Flame Resistance	IEC60332-1-3, FT1, FT2
Voltage Withstand Test (Power Wire)	1.0-70mm²: DC 2.5kV/15min
Voltage Withstand Test (Signal Wire)	0.5-0.75mm²P: DC 1.5kV/15min

Company Profile

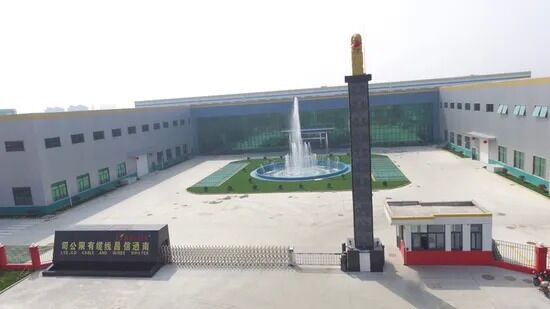

Founded in 2004 with $9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. With ISO9001, ISO14001, IATF16949, and ISO13485 system certifications, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various fields through our established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
