Oil Resistance UL1015 600V 105ºC Elevator Control Cable - Single Core Flexible Cable for Industrial Use

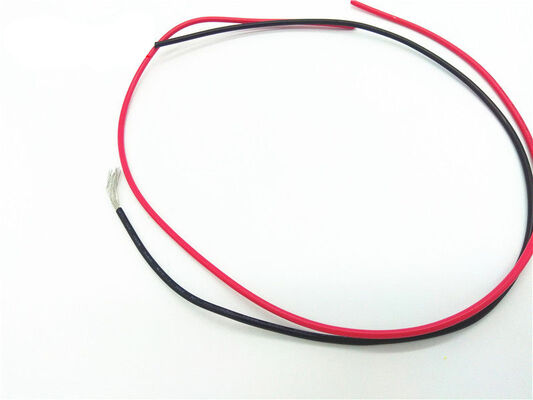

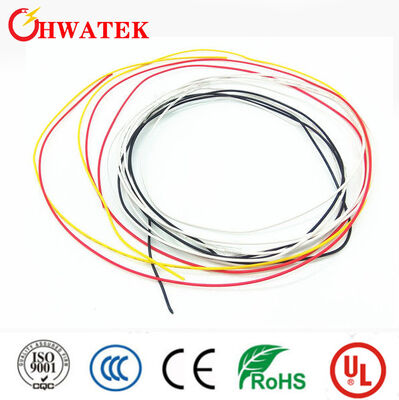

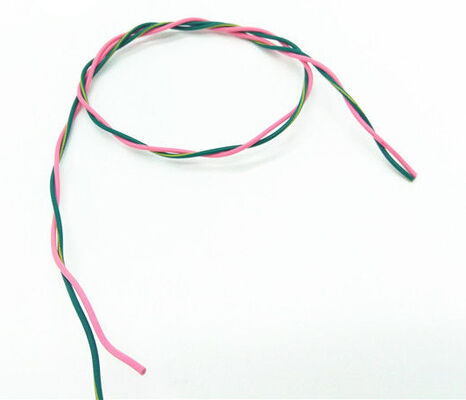

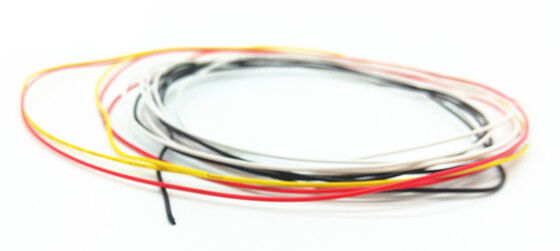

Large Image : Oil Resistance UL1015 600V 105ºC Elevator Control Cable - Single Core Flexible Cable for Industrial Use

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Rated Voltage:	600V	Temperature Range:	-40ºC To 105ºC
Flame Rating:	VW-1, FT1, FT2	Oil Resistance:	60ºC Or 80ºC
Voltage Withstand:	AC 2.0kV/1min	Conductor Structure:	Solid Or Stranded
Insulation Material:	Special Mixed PVC	Conductor Outer Diameter:	0.48mm To 8.10mm
Insulation Thickness:	0.76mm To 1.52mm	Insulation Outer Diameter:	2.1mm To 11.5mm
Cable Net Weight:	5.8kg/km To 381.9kg/km	Max DC Resistance:	150Ω/km To 0.5548Ω/km
Conductor Material:	Copper	Material Shape:	Round Wire
Environmental Compliance:	RoHS, REACH
Highlight:	Oil Resistance Elevator Control Cable , 600V Single Core Flexible Cable , 105ºC UL1015 Cable

Oil Resistance UL1015 600V 105º C Elevator Control Cable

Product Overview

This elevator control cabinet wiring cable with rated voltage of 600V features copper conductors and specialized insulation. The cable offers high flexibility, high temperature resistance, oil resistance, flame retardancy, and complies with the latest RoHS & Reach environmental protection standards.

Application

Primarily used for elevator control cabinet wiring harness applications.

Cable Structure

1 - Conductor
2 - Insulation
3 - Filling
4 - Strap
5 - Shield (Optional)
6 - Outer Sheath

Printing: E258652 AWM STYLE 1015 ***AWG 105ºC 600V VW-1- c AWM I/II A/B 105ºC 600V FT1 -LF- HWATEK

Basic Construction

Conductor: Solid or Stranded

Insulation: Special mixed PVC

Compliance Standards

International: UL758, UL1581, UL2556

RoHS, REACH Compliant

Technical Specifications

Rated Voltage: 600V

Rated Temperature: -40ºC to 105ºC

Flame Rating: VW-1, FT1, FT2

Oil Resistance: 60ºC or 80ºC Oil

Voltage Withstand Test: AC 2.0kV/1min

Product Specifications

Specification	Conductor Structure	Conductor Outer Diameter (mm)	Average Insulation Thickness (mm)	Insulation Outer Diameter (mm)	Cable Net Weight (kg/km)	Max Conductor DC Resistance (20ºC) Ω/km
26AWG	7/0.16	0.48	0.76	2.1±0.10	5.8	150
24AWG	7/0.20	0.60	0.76	2.2±0.10	6.9	94.2
22AWG	7/0.254	0.76	0.76	2.4±0.10	8.7	59.4
20AWG	7/0.32	0.96	0.76	2.6±0.10	11.4	36.7
18AWG	16/0.254	1.15	0.76	2.9±0.15	14.3	23.0
16AWG	26/0.254	1.49	0.76	3.2±0.15	20.2	14.6
14AWG	41/0.254	1.87	0.76	3.6±0.15	28.5	8.96
12AWG	65/0.254	2.36	0.76	4.1±0.20	41.2	5.64
10AWG	7/15/0.254	3.20	0.76	4.9±0.20	63.7	3.546
8AWG	7/24/0.254	4.10	1.14	6.7±0.30	107.4	2.23
6AWG	7/38/0.254	5.00	1.14	7.6±0.30	158.3	1.403
4AWG	7/60/0.254	6.30	1.52	9.7±0.40	254.0	0.882
2AWG	19/35/0.254	8.10	1.52	11.5±0.40	381.9	0.5548

Note: Detailed dimensions and technical parameters are subject to our product specifications. The above products are standard models, and custom specifications are available based on customer requirements.

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.

Certifications & Operations

Production Progress

Shipping

Frequently Asked Questions

Q: What products do you supply?
A: We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.

Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.

Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.

Q: What's your lead time?
A: Normally we complete orders in 2-3 weeks, and 5-6 weeks during peak season.

Q: How do you guarantee product quality?
A: We provide pre-production samples before mass production and conduct final inspection before shipment.

Major Customers
