Industrial UL20236 Multi Core Electrical Cable with PUR Sheath and Oil Resistant Properties

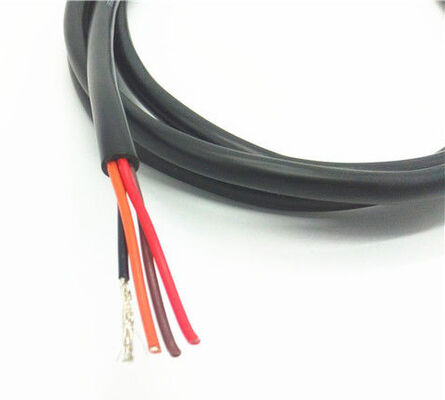

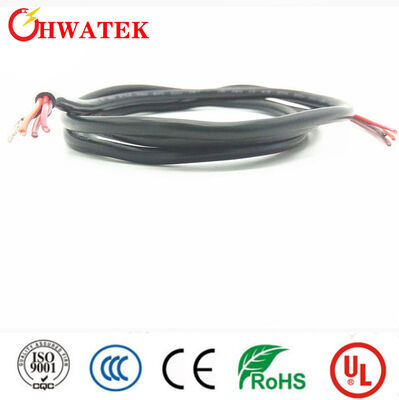

Large Image : Industrial UL20236 Multi Core Electrical Cable with PUR Sheath and Oil Resistant Properties

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Model NO.:	UL20236	Sheath Material:	PUR
Insulation Material:	Special PVC, SRPVC, PP, TPEE	Material Shape:	Round Wire
Conductor Type:	Stranded, Tinned Or Bare Copper	Conductor Standard:	IEC60228 CL5
Rated Voltage:	600V	Rated Temperature:	-40ºC To 80ºC
Flame Rating:	VW-1, FT1, FT2	Oil Resistance:	60ºC Or 80ºC Oil
Voltage Test:	AC 2.5kV/1min	Printing Details:	E258652 AWM STYLE 20940 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK
Quantity Per Roll:	305m, 610m Or As Request	Transport Package:	Rolled In Reels, Packed In Pallets
HS Code:	8544492100
Highlight:	PUR Sheath Electrical Cable , Oil Resistant Flexible Cable , UL20236 Multi Core Cable

Industrial UL20236 Multi Core Electrical Cable

PUR Sheath Oil Resistant Flexible Cable

Cable Construction

Conductor: Stranded, tinned or bare copper, IEC60228 CL5
Insulation: Special PVC, SRPVC, PP, TPEE
Jacket: PUR (Polyurethane)

Application

Designed for flexible use with medium mechanical stresses and free movement without tensile stress or forced movements in dry, moist, and wet environments (excluding open air). Ideal for use as measuring and control cables in tool machines and industrial equipment.

Standards & Compliance

International Standards: UL758, UL1581, UL2556
Environmental Compliance: RoHS, REACH Compliant

Technical Specifications

Rated Voltage	600V
Temperature Range	-40ºC to 80ºC
Flame Rating	VW-1, FT1, FT2
Oil Resistance	60ºC or 80ºC Oil
Voltage Withstand Test	AC 2.5kV/1min
Printing	E258652 AWM STYLE 20940 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK

Note: "XX" represents AWG Number

Key Properties

Extensively oil resistant
Conditional drag chain compatible
Conditional suitability for torsion
Low temperature performance
Self-extinguishing and flame retardant

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

Quality Certifications

We maintain ISO9001, ISO14001, IATF16949, and ISO13485 system certifications. All products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications.

We serve global customers across various industries through our established sales system, guided by our management principles: HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
