UL20549 PUR Sheath Multicore Flexible Cable with 600V Rated Voltage and Oil Resistance

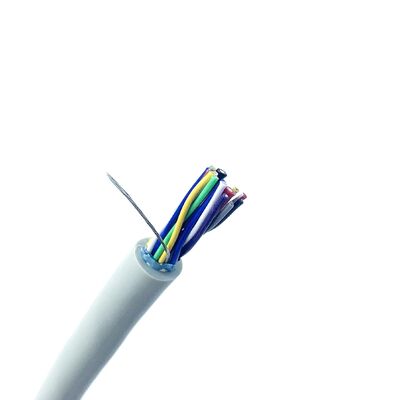

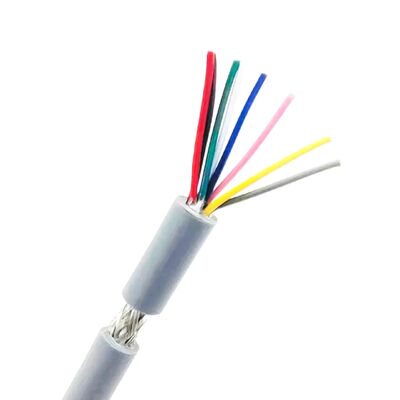

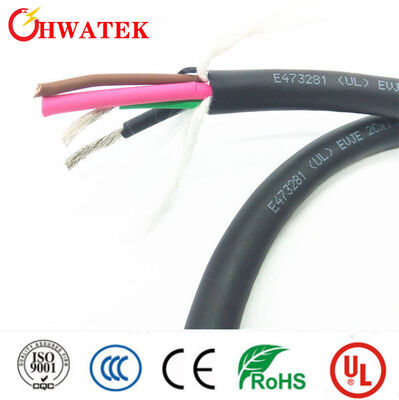

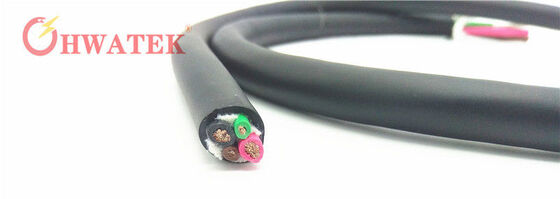

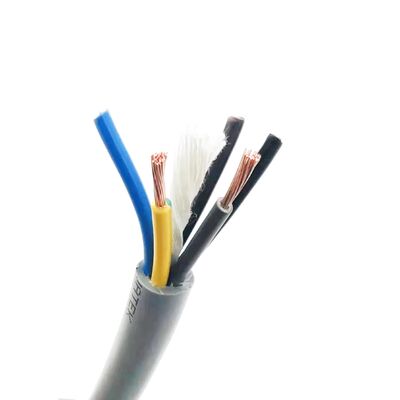

Large Image : UL20549 PUR Sheath Multicore Flexible Cable with 600V Rated Voltage and Oil Resistance

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Model NO.:	UL20549	Sheath Material:	PUR
Insulation Material:	Special PVC, Srpvc, PP, Tpee	Material Shape:	Round Wire
Conductor Type:	Stranded, Tinned Or Bare Copper	Conductor Standard:	IEC60228 CL5
Rated Voltage:	600V	Rated Temperature:	-40ºC-80ºC
Flame Resistance:	VW-1, FT1, FT2	Oil Resistance:	60ºC Or 80ºC Oil
Voltage Test:	AC 2.5kV/1min	Printing Details:	E258652 AWM STYLE 20940 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK
Quantity Per Roll:	305m, 610m Or As Request	Transport Package:	Rolled In Reels, Packed In Pallets
HS Code:	8544492100
Highlight:	PUR Sheath Multicore Flexible Cable , 600V Rated Voltage Multi Core Copper Wire , Oil Resistant UL20549 Cable

Electrical UL20549 PUR Sheath Multicore Flexible Cable

Multi Core Copper Wire for industrial applications requiring flexibility and durability

Cable Construction

Conductor: Stranded, tinned or bare copper, IEC60228 CL5

Insulation: Special PVC, SRPVC, PP, TPEE

Jacket: PUR (Polyurethane)

Application

Designed for flexible use with medium mechanical stresses in dry, moist, and wet environments (excluding open air). Ideal for measuring and control cables in tool machines and industrial equipment with free movement without tensile stress or forced movements.

Standards & Compliance

International Standards: UL758, UL1581, UL2556

Environmental Compliance: RoHS, REACH Compliant

Technical Specifications

Rated Voltage	600V
Temperature Range	-40ºC to 80ºC
Flame Rating	VW-1, FT1, FT2
Oil Resistance	60ºC or 80ºC Oil
Voltage Withstand Test	AC 2.5kV/1min
Printing	E258652 AWM STYLE 20940 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK Note: "XX" represents AWG Number

Key Properties

Extensively oil resistant
Conditional drag chain compatible
Conditional suitability for torsion applications
Excellent low temperature performance
Self-extinguishing and flame retardant

Company Profile

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.

We maintain ISO9001, ISO14001, IATF16949, and ISO13485 system certifications. All products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries guided by our management principles: HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.

Certifications

Production Process

Shipping & Logistics

Frequently Asked Questions

Q: What products do you supply?
A: We manufacture consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.

Q: What certifications do you hold?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.

Q: Can we get samples before ordering?
A: Yes, we are happy to arrange samples for your evaluation.

Q: What's your lead time?
A: Normally 2-3 weeks for standard orders, 5-6 weeks during peak season.

Q: How do you guarantee product quality?
A: We provide pre-production samples before mass production and conduct final inspection before shipment.
