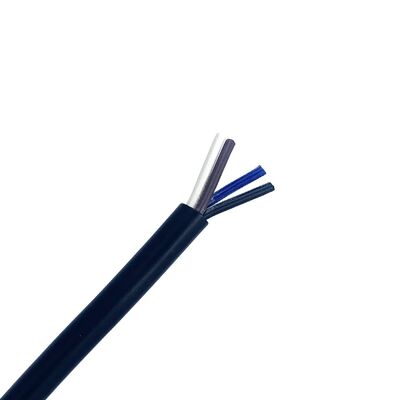

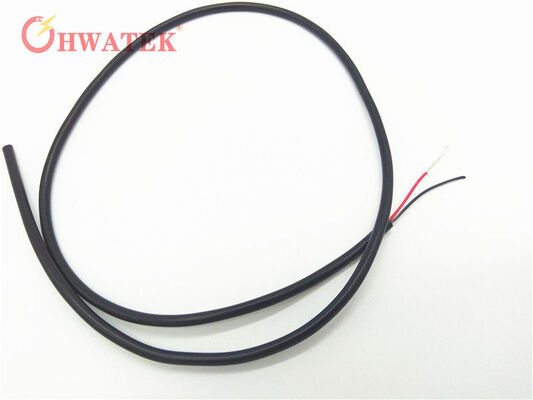

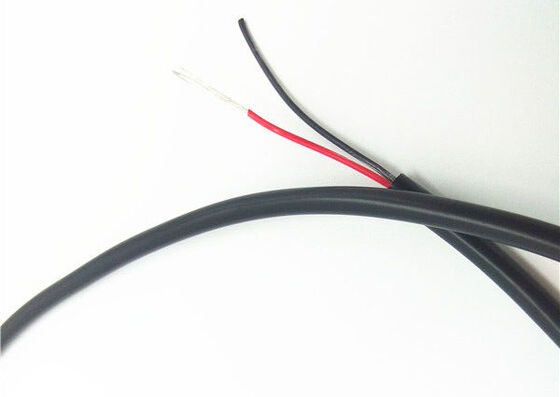

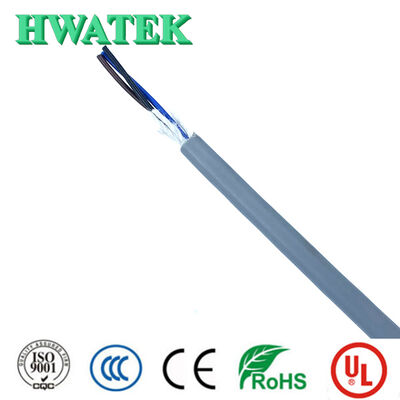

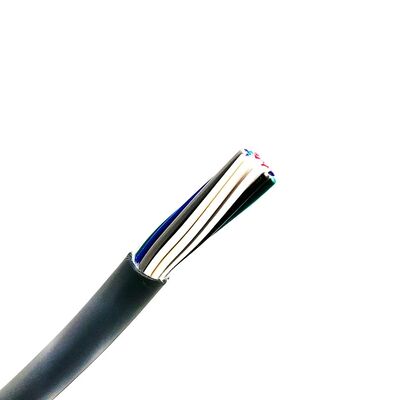

UL20940 Electrical Multi Core PUR Sheath Copper Conductor Oil Resistant Wire Cable for Tool Machines

Large Image : UL20940 Electrical Multi Core PUR Sheath Copper Conductor Oil Resistant Wire Cable for Tool Machines

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Model Number:	UL20940	Sheath Material:	PUR
Insulation Material:	Special PVC, SRPVC, PP, TPEE	Conductor Material:	Stranded, Tinned Or Bare Copper
Conductor Standard:	IEC60228 CL5	Rated Voltage:	600V
Rated Temperature:	-40ºC To 80ºC	Flame Resistance:	VW-1, FT1, FT2
Oil Resistance:	60ºC Or 80ºC Oil	Voltage Withstand:	AC 2.5kV/1min
Printing Details:	E258652 AWM STYLE 20940 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK	Quantity Per Roll:	305m, 610m Or As Request
Material Shape:	Round Wire	Color Options:	Optional
Transport Packaging:	Rolled In Reels, Packed In Pallets
Highlight:	UL20940 Electrical Wire Cable , Copper Conductor Multi Core Cable , Oil Resistant PUR Sheath Cable

UL20940 Electrical Multi Core PUR Sheath Copper Conductor for Tool Machines Wire Cable

Cable Construction

Conductor: Stranded, tinned or bare copper, IEC60228 CL5

Insulation: Special PVC, SRPVC, PP, TPEE

Jacket: PUR

Application

These cables are designed for flexible use with medium mechanical stresses, suitable for free movement without tensile stress or forced movements in dry, moist, and wet indoor environments. Ideal for use as measuring and control cables in tool machines and industrial equipment.

Standards Compliance

International: UL758, UL1581, UL2556

RoHS, REACH Compliant

Technical Specifications

Rated Voltage	600V
Temperature Range	-40ºC to +80ºC
Flame Rating	VW-1, FT1, FT2
Oil Resistance	60ºC or 80ºC Oil
Voltage Withstand Test	AC 2.5kV/1min
Printing	E258652 AWM STYLE 20940 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK

Note: "XX" represents AWG number

Key Properties

Extensively oil resistant
Conditional drag chain compatible
Conditional suitability for torsion
Low temperature performance
Self-extinguishing and flame retardant
