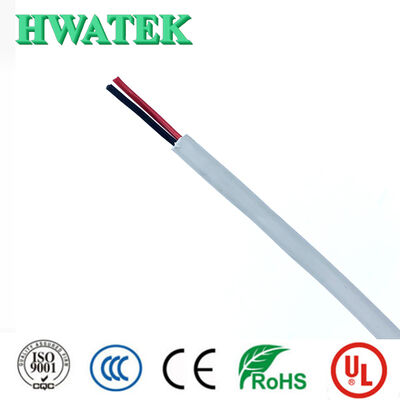

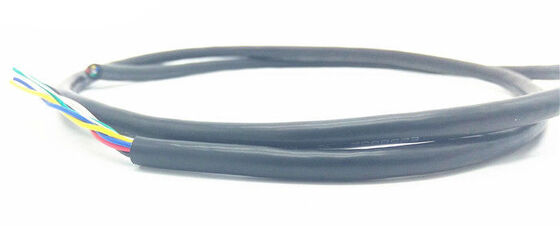

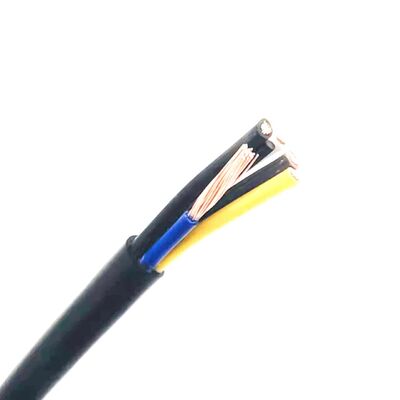

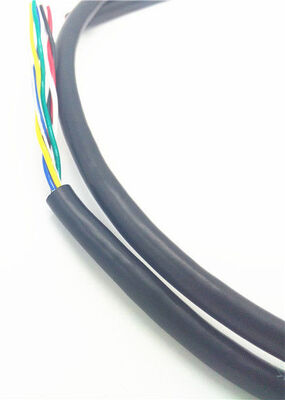

UL20236 PUR Sheath Screened Multicore Flexible Appliance Wiring Cable
Cable Construction
Conductor: Stranded, tinned or bare copper, IEC60228 CL5
Insulation: Special PVC, SRPVC, PP, TPEE
Jacket: PUR
Application
These cables are designed for flexible use with medium mechanical stresses and free movement without tensile stress or forced movements in dry, moist, and wet rooms (excluding open air). Suitable for use as measuring and control cables in tool machines.
Standards & Compliance
International Standards: UL758, UL1581, UL2556
Compliance: RoHS, REACH Compliant
Technical Specifications
| Rated Voltage |
600V |
| Rated Temperature |
-40ºC to 80ºC |
| Flame Rating |
VW-1, FT1, FT2 |
| Oil Resistance |
60ºC or 80ºC Oil |
| Voltage Withstand Test |
AC 2.5kV/1min |
| Printing |
E258652 AWM STYLE 20940 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK |
Note: "XX" represents AWG Number
Key Properties
- Extensively oil resistant
- Conditional drag chain compatible
- Conditional suitability for torsion
- Low temperature performance
- Self-extinguishing and flame retardant
Company Profile
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various fields through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Certifications
Production Process
Shipping & Logistics
Frequently Asked Questions
Q: What products do you supply?
A: We manufacture consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certifications do you hold?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are happy to arrange samples for your evaluation.
Q: What is your lead time?
A: Normally we complete orders in 2-3 weeks, and 5-6 weeks during peak season.
Q: How do you guarantee product quality?
A: We provide pre-production samples before mass production and conduct final inspection before shipment.
