PUR Sheath Multicore Flexible Cable Electrical Wire 300V Rated VW-1 Flame Retardant

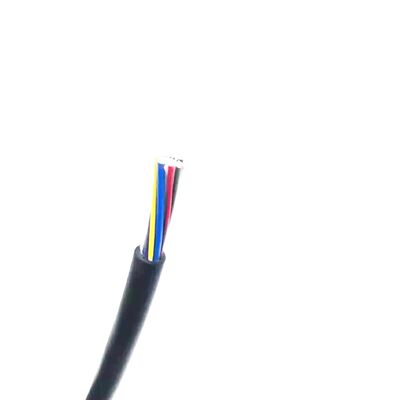

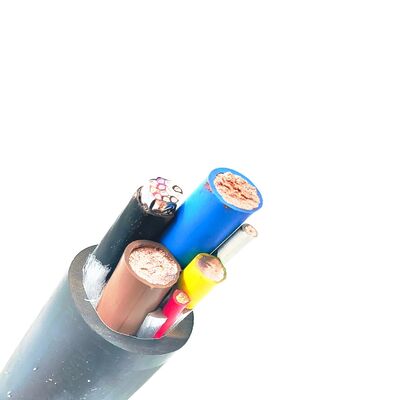

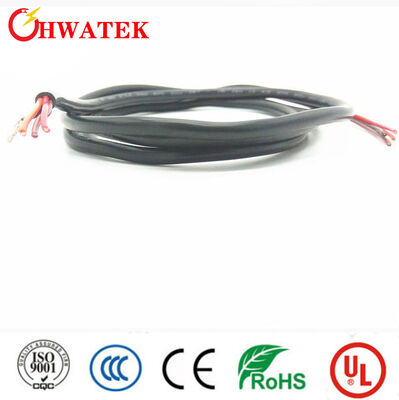

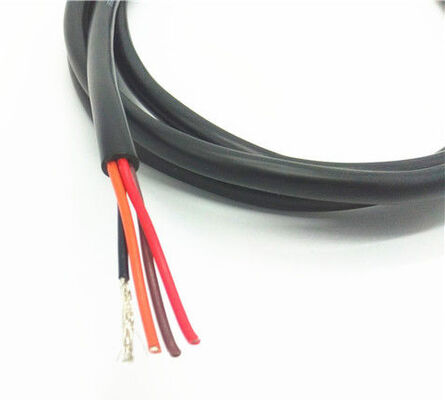

Large Image : PUR Sheath Multicore Flexible Cable Electrical Wire 300V Rated VW-1 Flame Retardant

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Sheath Material:	PUR	Insulation Material:	Special PVC, SRPVC, PP, TPEE
Conductor Type:	Stranded, Tinned Or Bare Copper	Conductor Standard:	IEC60228 CL5
Rated Voltage:	600V	Rated Temperature:	-40ºC To 80ºC
Flame Rating:	VW-1, FT1, FT2	Oil Resistance:	60ºC Or 80ºC Oil
Voltage Withstand:	AC 2.5kV/1min	Printing Details:	E258652 AWM STYLE 20940 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK
Material Shape:	Round Wire	Quantity Per Roll:	305m, 610m Or As Request
Low Temperature:	Yes	Self-extinguishing:	Yes
Flame Retardant:	Yes
Highlight:	PUR Sheath Flexible Cable , 300V Rated Electrical Wire , VW-1 Flame Retardant Multicore Cable

PUR Sheath Multicore Flexible Cable Electrical Wire Unscreened UL20549 300V VW-1

Construction

Conductor: Stranded, tinned or bare copper, IEC60228 CL5
Insulation: Special PVC, SRPVC, PP, TPEE
Jacket: PUR

Application

These cables are designed for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist, and wet rooms (excluding open air). Suitable for use as measuring and control cables in tool machines and industrial equipment.

Standards

International: UL758, UL1581, UL2556
RoHS, REACH Compliant

Technical Data

Parameter	Specification
Rated Voltage	600V
Rated Temperature	-40ºC to 80ºC
Flame Rating	VW-1, FT1, FT2
Oil Resistance	60ºC or 80ºC Oil
Voltage Withstand Test	AC 2.5kV/1min
Printing	E258652 AWM STYLE 20940 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK Note: "XX" represents AWG Number

Properties

Extensively oil resistant
Conditional drag chain compatible
Conditional suitability for torsion
Low temperature performance
Self-extinguishing and flame retardant
