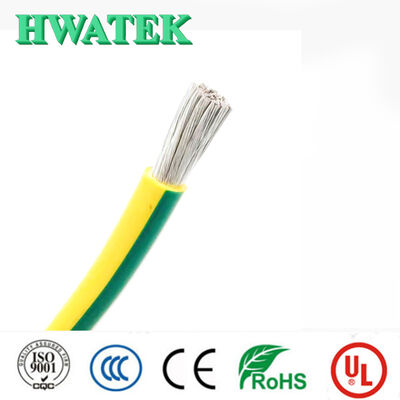

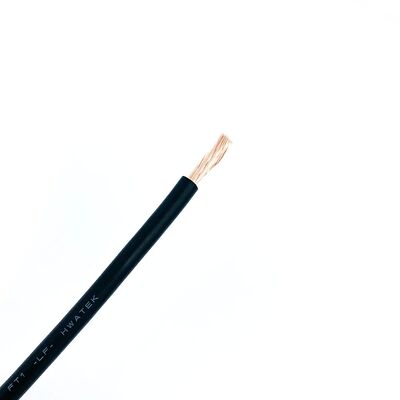

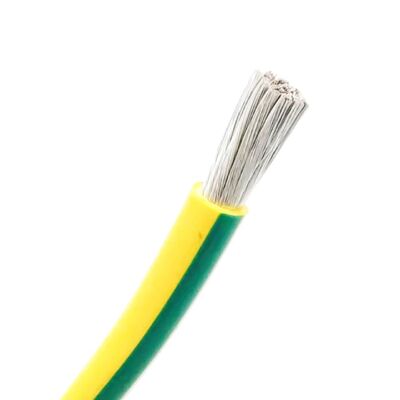

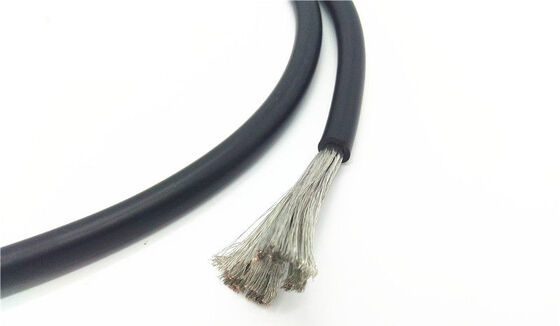

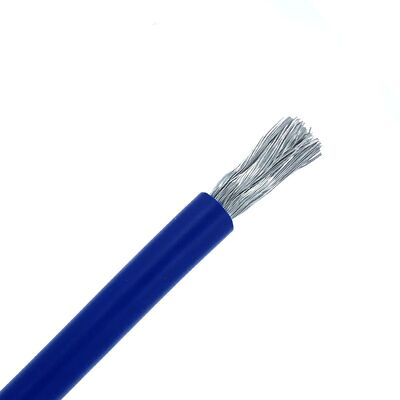

UL1015 600V 105ºC Oil Resistance Elevator Control Cable Single Core Flexible Wire

Large Image : UL1015 600V 105ºC Oil Resistance Elevator Control Cable Single Core Flexible Wire

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Rated Voltage:	600V	Temperature Range:	-40ºC To 105ºC
Flame Resistance:	VW-1, FT1, FT2	Oil Resistance:	60ºC Or 80ºC Oil
Voltage Withstand:	AC 2.0kV/1min	Conductor Material:	Copper
Insulation Material:	PVC	Conductor Structure:	Solid Or Stranded
Cable Shape:	Round Wire	Conductor Outer Diameter:	0.48mm To 8.10mm
Insulation Thickness:	0.76mm To 1.52mm	Insulation Outer Diameter:	2.1mm To 11.5mm
Cable Net Weight:	5.8kg/km To 381.9kg/km	Max DC Resistance:	150Ω/km To 0.5548Ω/km
Quantity Per Roll:	305m, 610m Or As Request
Highlight:	600V Elevator Control Cable , 105ºC Single Core Flexible Cable , Oil Resistance UL1015 Cable

UL1015 600V 105ºC Oil Resistance Elevator Control Cable Wire

Product Overview

This 600V rated elevator control cabinet wiring features copper conductors with specialized insulation. The cable delivers high flexibility, temperature resistance up to 105ºC, oil resistance, and flame retardancy. All materials comply with the latest RoHS and Reach environmental standards.

Primary Application

Specifically designed for elevator control cabinet wiring harness applications.

Construction Details

Conductor: Solid or Stranded Copper

Insulation: Special Mixed PVC Compound

Compliance Standards

International Standards: UL758, UL1581, UL2556

Environmental Compliance: RoHS, REACH Compliant

Technical Specifications

Rated Voltage: 600V

Temperature Range: -40ºC to +105ºC

Flame Rating: VW-1, FT1, FT2

Oil Resistance: 60ºC or 80ºC Oil

Voltage Withstand Test: AC 2.0kV/1min

Product Specifications

Specification	Conductor Structure	Conductor Outer Diameter (mm)	Average Insulation Thickness (mm)	Insulation Outer Diameter (mm)	Cable Net Weight (kg/km)	Max Conductor DC Resistance (20ºC) Ω/km
26AWG	7/0.16	0.48	0.76	2.1±0.10	5.8	150
24AWG	7/0.20	0.60	0.76	2.2±0.10	6.9	94.2
22AWG	7/0.254	0.76	0.76	2.4±0.10	8.7	59.4
20AWG	7/0.32	0.96	0.76	2.6±0.10	11.4	36.7
18AWG	16/0.254	1.15	0.76	2.9±0.15	14.3	23.0
16AWG	26/0.254	1.49	0.76	3.2±0.15	20.2	14.6
14AWG	41/0.254	1.87	0.76	3.6±0.15	28.5	8.96
12AWG	65/0.254	2.36	0.76	4.1±0.20	41.2	5.64
10AWG	7/15/0.254	3.20	0.76	4.9±0.20	63.7	3.546
8AWG	7/24/0.254	4.10	1.14	6.7±0.30	107.4	2.23
6AWG	7/38/0.254	5.00	1.14	7.6±0.30	158.3	1.403
4AWG	7/60/0.254	6.30	1.52	9.7±0.40	254.0	0.882
2AWG	19/35/0.254	8.10	1.52	11.5±0.40	381.9	0.5548

Note: Detailed dimensions and technical parameters are subject to our product specifications. The above products are standard models, and custom specifications are available based on customer requirements.
