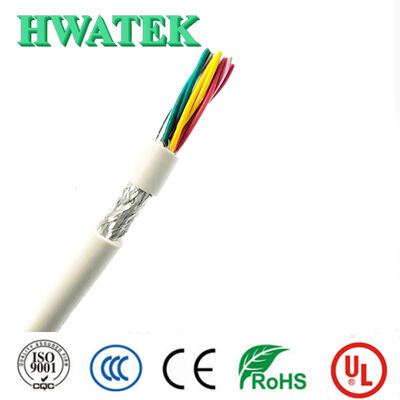

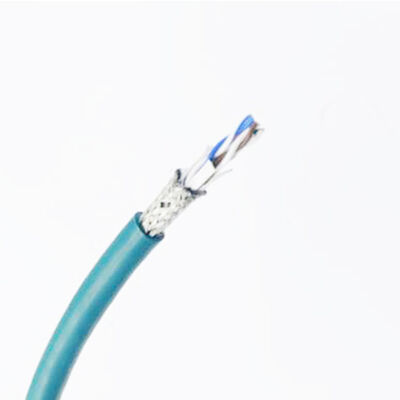

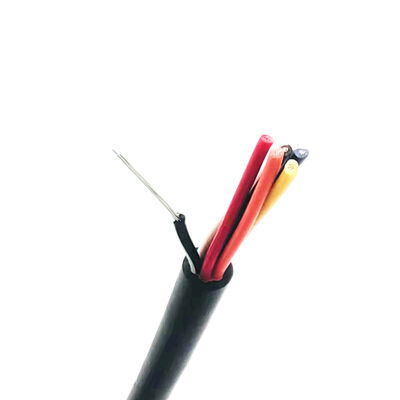

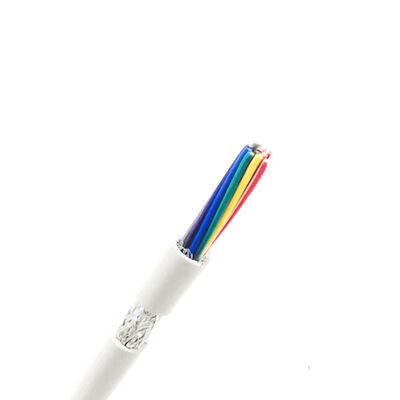

AW2464 PVC Insulated Flexible Electrical Power and Control Copper Wire Cable
Product Construction & Specifications
| Construction |
Mechanical Performance |
| Conductor: Tinned copper stranded |
Material: Jacket |
| Cross section: 26AWG |
PVC |
| Construction: 7/0.16m |
Tensile strength: ≥10.3MPa |
| Strand Dia.: 0.48mm |
Elongation: ≥100% |
| Insulation: PVC |
Aged condition: 113±1ºC×168h |
| Nom.Thickness: 0.23mm |
Percent of original tensile strength: ≥70% |
| Min.Thickness: 0.18mm |
Percent of original elongation: ≥65% |
| Insulation Dia.: 0.95+0.05/-0mm |
Heat shock: No crack |
| Insulation colour: 1.red 2.black 3.blue 4.white |
Cold bend: No crack |
| Filler: Optional |
Deformation test: ≤50% |
| Assembly: 4C×26AWG |
Flame test: VW-1 |
| Jacket: PVC(Soft) |
Electric Performance |
| Nom.Thickness: 0.76mm |
Rated Temperature: -20~80ºC |
| Min.Thickness: 0.61mm |
Voltage rating: 300V |
| Outer Dia.: 4.0±0.20mm |
Max.conductor DC resistance(20ºC): 150 Ω/km |
| Colour: black |
Dielectric Strength AC: 2.0kV/1min |
|
Min.insulation resistance(20ºC): 10MΩ.km |
Detailed Construction
Conductor: Stranded, tinned or bare copper
Insulation: PVC, SRPVC
Black cores with continuous white numbering (also available in other colours on request)
GN-YE conductor, 3 cores and above in the outer layer
Shield or Braid: Bare or tinned copper braid or Spiral and AL-mylar
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.
Standards Compliance
International: UL758, UL1581, UL2556
RoHS, REACH Compliant
Technical Data
Rated voltage: 300V
Rated Temperature: -20ºC-80ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60ºC or 80ºC Oil
Voltage withstand test: AC 2.0kV/1min
Key Properties
- Effectively resist electromagnetic interference
- Excellent insulation performance
- Extensively oil resistant
- Flexible
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters. With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
Frequently Asked Questions
Q: What can you supply?
A: We do produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
