Industrial Flexible Multicore Electrical Power Cable with PUR Jacket 300V Rated Voltage and Oil Resistant Properties

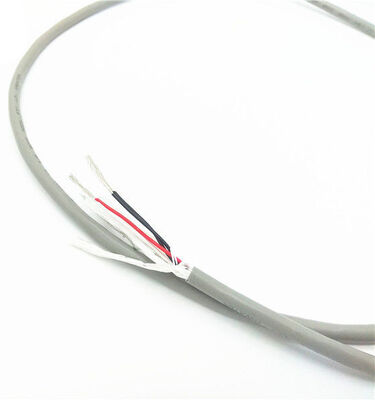

Large Image : Industrial Flexible Multicore Electrical Power Cable with PUR Jacket 300V Rated Voltage and Oil Resistant Properties

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Sheath Material:	PUR	Insulation Material:	PP, Tpee
Material Shape:	Round Wire	Conductor Type:	Stranded, Tinned Or Bare Copper
Rated Voltage:	300V	Rated Temperature:	-40ºC-80ºC
Flame Rating:	VW-1, FT1, FT2, IEC60332-1-3	Voltage Test:	AC 2.0kV/1min
Insulation Performance:	Excellent	Oil Resistance:	Extensively Oil Resistant
Flexibility:	Flexible	Low Temperature:	Low Temperature
Quantity Per Roll:	305m, 610m Or As Request	Transport Package:	Rolled In Reels, Packed In Pallets
HS Code:	8544492100
Highlight:	PUR Jacket Flexible Power Cable , 300V Rated Voltage Industrial Electrical Cable , Oil Resistant Multicore Cable

PP/TPEE Insulation Industrial Flexible Multicore Electrical Power Cable

Construction

Conductor: Stranded, tinned or bare copper
Insulation: PE, TPEE
Jacket: PUR

Standards Compliance

International: UL758, UL1581, UL2556, IEC60228
RoHS Compliant
REACH Compliant

Technical Specifications

Rated Voltage	300V
Rated Temperature	-40ºC to +80ºC
Flame Rating	VW-1, FT1, FT2, IEC60332-1-3
Voltage Withstand Test	AC 2.0kV/1min

Key Properties

Excellent insulation performance
Extensively oil resistant
Highly flexible
Low temperature resistant
