1000V Rated Voltage PVC Insulated Multi Core Copper Flexible Electrical Cable with Electromagnetic Interference and Oil Resistance

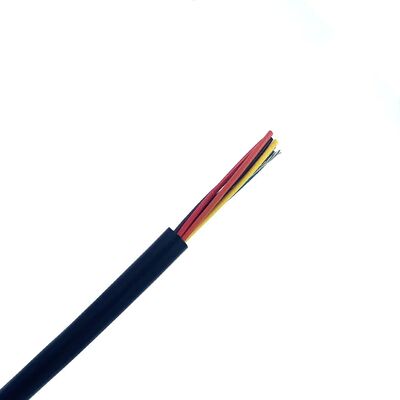

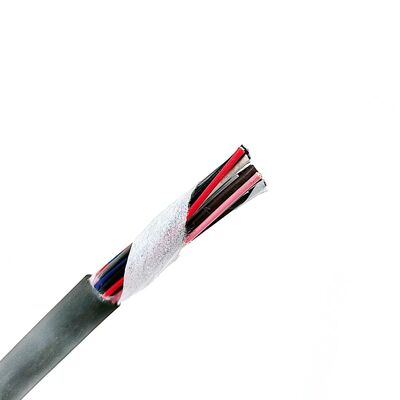

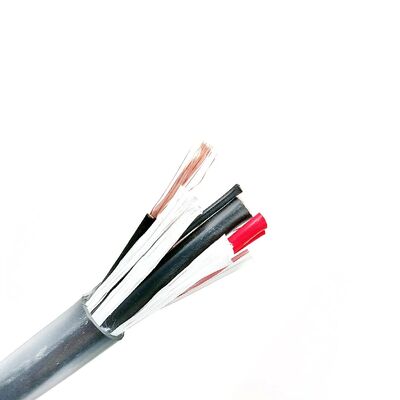

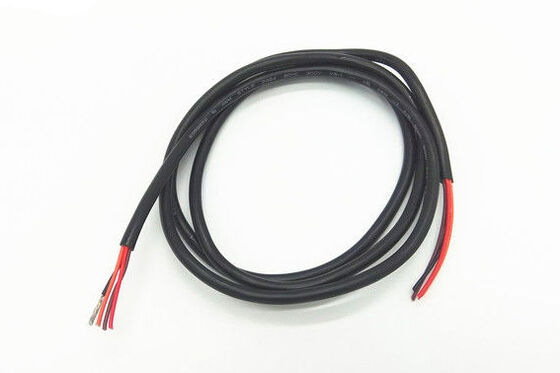

Large Image : 1000V Rated Voltage PVC Insulated Multi Core Copper Flexible Electrical Cable with Electromagnetic Interference and Oil Resistance

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Rated Voltage:	1000V	Rated Temperature:	-40ºC-105ºC
Flame Resistance:	VW-1, FT1, FT2, IEC60332-1-3	Voltage Test:	AC 3.5kV/1min
Conductor Material:	Stranded, Tinned Or Bare Copper	Insulation Material:	PVC, PP, SRPVC, TPE, TPEE
Shield Material:	Bare Or Tinned Copper Braid Or Spiral And AL-mylar	Jacket Material:	PVC
Sheath Material:	PVC	Material Shape:	Round Wire
Color Options:	Optional	Roll Length:	305m, 610m Or As Request
Electromagnetic Interference:	Resistant	Insulation Performance:	Excellent
Oil Resistance:	Extensive
Highlight:	1000V Rated Voltage Flexible Electrical Cable , Electromagnetic Interference Resistant Multi Core Copper Cable , Oil Resistant PVC Insulated Cable

1000V PVC Insulation Cable Shield Multi Core Copper Flexible Electrical Cable

Cable Construction

Conductor: Stranded, tinned or bare copper
Insulation: PVC, PP, SRPVC, TPE, TPEE
Shield or Braid: Bare or tinned copper braid or Spiral and AL-mylar
Jacket: PVC

Compliance Standards

International: UL758 AWM STYLE 2586, UL1581, UL2556, IEC60228 CL5
RoHS, REACH Compliant

Technical Specifications

Rated Voltage	1000V
Rated Temperature	-40ºC to +105ºC
Flame Rating	VW-1, FT1, FT2, IEC60332-1-3
Voltage Withstand Test	AC 3.5kV/1min

Key Properties

Effectively resists electromagnetic interference
Excellent insulation performance
Extensively oil resistant
Highly flexible
Low temperature resistant
UV resistant
High voltage capability
