RoHS Compliant Copper Conductor 300V Rated Industrial Flexible Control Cable for Fixed Installation

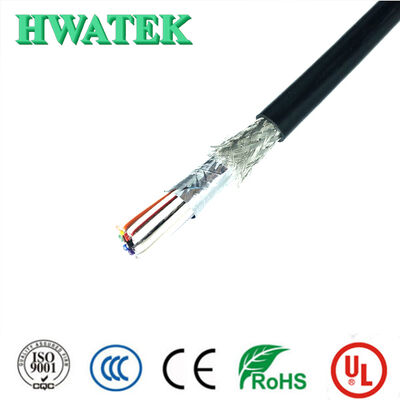

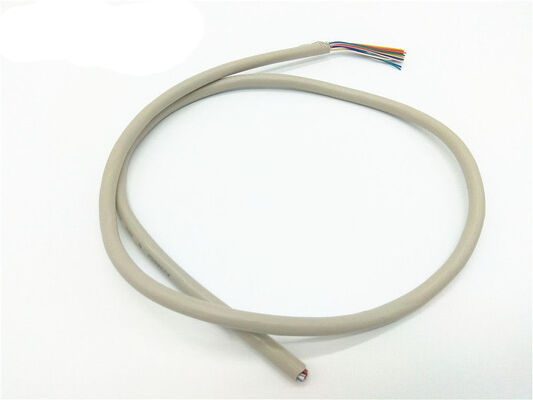

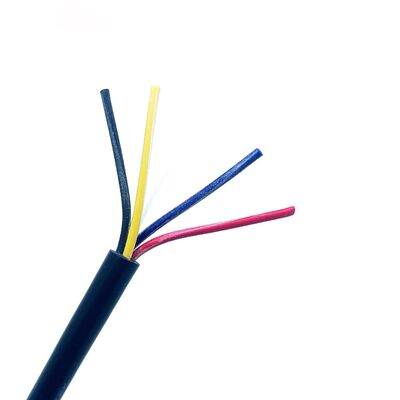

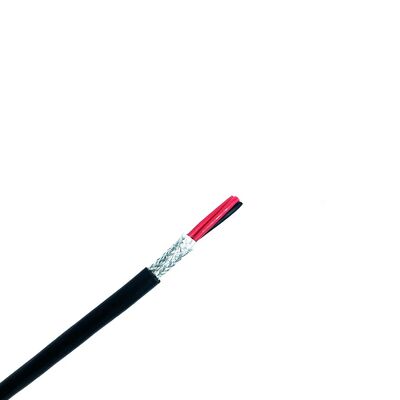

Large Image : RoHS Compliant Copper Conductor 300V Rated Industrial Flexible Control Cable for Fixed Installation

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	3,000
Price:	0.5

Contact Now

Detailed Product Description

Conductor Material:	Stranded, Tinned Or Bare Copper	Insulation Material:	PVC, PP, SRPVC, TPE, TPEE
Shield/Braid:	Bare Or Tinned Copper Braid Or Spiral And AL-mylar	Jacket Material:	PVC
Rated Voltage:	300V	Rated Temperature:	-40ºC To 80ºC
Flame Rating:	VW-1, FT1, FT2, IEC60332-1-3	Voltage Test:	AC 2.0kV/1min
Electromagnetic Resistance:	Effective	Insulation Performance:	Excellent
Oil Resistance:	Extensive	Flexibility:	High
Low Temperature:	Resistant	UV Resistance:	Resistant
Quantity Per Roll:	305m, 610m Or As Request
Highlight:	RoHS Compliant Flexible Control Cable , Copper Conductor Single Core Cable , 300V Rated Industrial Flexible Cable

RoHS Reach Compliant Copper Conductor Industrial Flexible Control Cable

Construction

Conductor: Stranded, tinned or bare copper
Insulation: PVC, PP, SRPVC, TPE, TPEE
Shield or Braid: Bare or tinned copper braid or spiral and AL-mylar
Jacket: PVC

Application

For fixed installation or flexible applications with free movements without forcing, suitable for high mechanical strain environments where constant movement does not occur and without tensile stress.

Standards Compliance

International: UL758, UL1581, UL2556, IEC60228
RoHS and REACH Compliant

Technical Data

Specification	Value
Rated Voltage	300V
Rated Temperature	-40ºC to 80ºC
Flame Rating	VW-1, FT1, FT2, IEC60332-1-3
Voltage Withstand Test	AC 2.0kV/1min

Key Properties

Effectively resists electromagnetic interference
Excellent insulation performance
Extensively oil resistant
Flexible design
Low temperature performance
UV resistant
