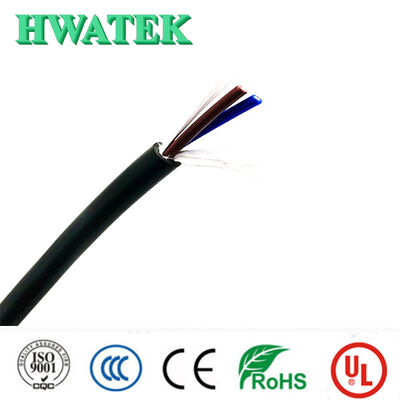

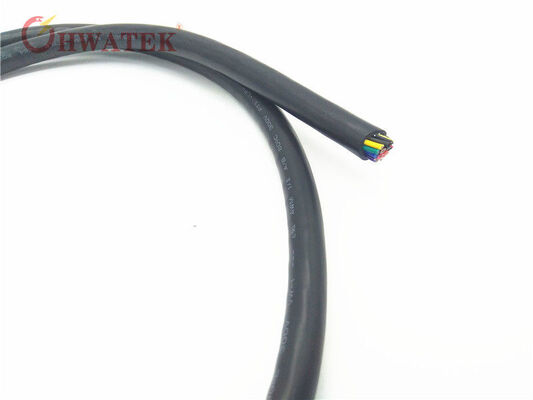

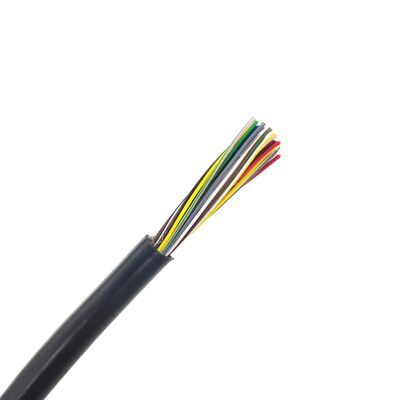

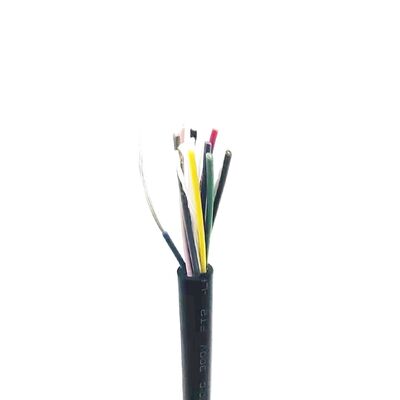

PVC Sheath FT2 Flame 26AWG Multicore Flexible Cable
Product Overview
This 300V rated control signal cable for elevator shaft wiring features copper conductors, insulation, filling, tape, optional shielding, and outer sheath. Designed with high flexibility, temperature resistance, oil resistance, and flame retardancy. All materials comply with RoHS & Reach environmental standards.
Key Features
High flexibility for easy installation
Temperature resistant: -40°C to 105°C
Oil resistant: 60°C or 80°C
Flame retardant: VW-1, FT1, FT2 rated
RoHS & Reach compliant
300V rated voltage
Application Fields
Primarily used for fixed installation of signal transmission cables in elevator shafts.
| Scope of Application |
Rated Voltage |
Recommended Specifications |
Recommended Number of Cores |
Control cabinet → hoistway switch wiring
Safety circuit switch hoistway cable |
300V |
26AWG-14AWG |
7+1 |
| Upper forced switch, lower forced switch, upper limit switch, lower limit switch, ladder lock switch, fire return switch |
300V |
26AWG-14AWG |
2+1 |
| Door lock trunk cable and door lock branch cable in hoistway |
300V |
26AWG-14AWG |
2+1 |
Control cabinet → hoistway floor display wiring
Floor display main line cable, floor display branch cable |
300V |
26AWG-14AWG |
Number of layers +N+PE
Note: The number of layers is 7 and above |
Cable Structure Diagram
1 - Conductor
2 - Insulation
3 - Filling
4 - Strap

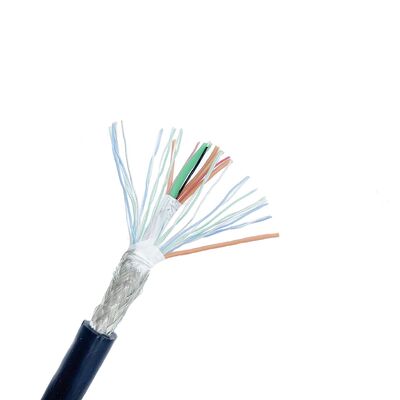

5 - Shield (Optional)
6 - Outer sheath
Printing: E258652 AWM STYLE 2517 ***AWG 105ºC 300V VW-1- c AWM I/II A/B 105ºC 300V FT1 -LF- HWATEK
Basic Construction
- Conductor: Solid or Stranded
- Insulation: Special mixed PVC
- Shield or Braid: Optional
- Jacket: Special mixed PVC
Compliance Standards
UL758
UL1581
UL2556
RoHS
REACH
Technical Specifications
- Rated voltage: 300V
- Rated Temperature: -40ºC to 105ºC
- Flame rating: VW-1, FT1, FT2
- Oil resistance: 60ºC or 80ºC Oil
- Voltage withstand test: AC 2.0kV/1min
Detailed Specifications
| Number of cores*Specifications |
Conductor structure |
Conductor outer diameter (mm) |
Average insulation thickness (mm) |
Insulation outer diameter (mm) |
Average thickness of sheath (mm) |
Finished outer diameter (mm) |
Cable net weight (kg/km) |
Maximum conductor DC resistance (20ºC) Ω/km |
| 2C*26AWG | 7/0.16 | 0.48 | 0.30 | 1.2±0.05 | 0.76 | 4.3±0.20 | 19.2 | 150 |
| 2C*24AWG | 7/0.20 | 0.60 | 0.30 | 1.3±0.05 | 0.76 | 4.5±0.20 | 21.9 | 94.2 |
| 2C*22AWG | 7/0.254 | 0.76 | 0.30 | 1.5±0.05 | 0.76 | 4.9±0.20 | 27.0 | 59.4 |
| 2C*20AWG | 7/0.32 | 0.96 | 0.30 | 1.7±0.10 | 0.76 | 5.3±0.20 | 33.7 | 36.7 |
| 2C*18AWG | 16/0.254 | 1.15 | 0.30 | 1.9±0.10 | 0.76 | 5.7±0.20 | 41.2 | 23.0 |
| 2C*16AWG | 26/0.254 | 1.49 | 0.30 | 2.2±0.10 | 0.76 | 6.4±0.30 | 55.2 | 14.6 |
| 2C*14AWG | 41/0.254 | 1.87 | 0.30 | 2.6±0.10 | 0.76 | 7.2±0.30 | 75.7 | 8.96 |
Remark 1: Detailed dimensions and technical parameters are subject to our product specifications. The above products are non-shielded standard models, and can also be customized according to customer requirements or actual usage.
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
Certified with ISO9001, ISO14001, IATF16949, ISO13485 systems. All products have passed CCC, UL, CUL, CE, CSA, ETL safety certifications. We operate globally based on the management principles of HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certifications & Processes
Production Progress
Shipping
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final inspection before shipment.
